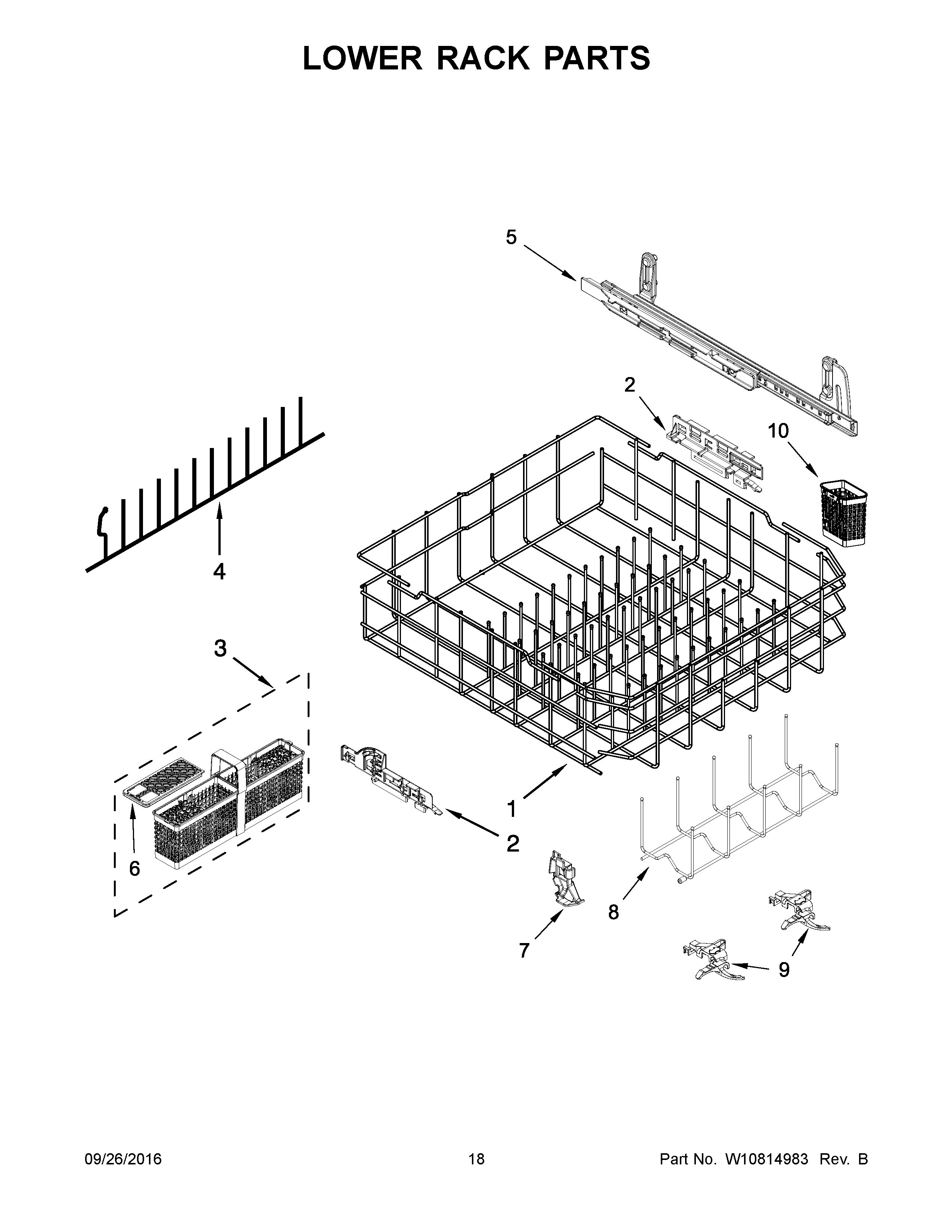

KDTE254EWH1 10 – LOWER RACK PARTS

KDTE254EWH1 10 – LOWER RACK PARTS

Written by

in

KDTE254EWH1 10 – LOWER RACK PARTS

Products

PositionProduct
1W11498446 Whirlpool Dishrack
2AWPW10473809 Whirlpool Dishwasher Support
2WPW10473807 Whirlpool Dishwasher Support
3WPW10473836 Whirlpool Silverware Basket
4W10728160 Whirlpool Tine Assembly
5W10822165 Whirlpool Slide Rail
5AW10822166 Whirlpool Dishwasher Track
6WPW10473835 Whirlpool Dishwasher Lid
7W11193827 Whirlpool Dishwasher Support
7AW11197023 Whirlpool Dishwasher Support
8W10554952 Whirlpool Dishwasher Tine Row
9W11213333 Whirlpool Dishwasher Retainer
10WPW10482109 Whirlpool Dishwasher Basket Ware
