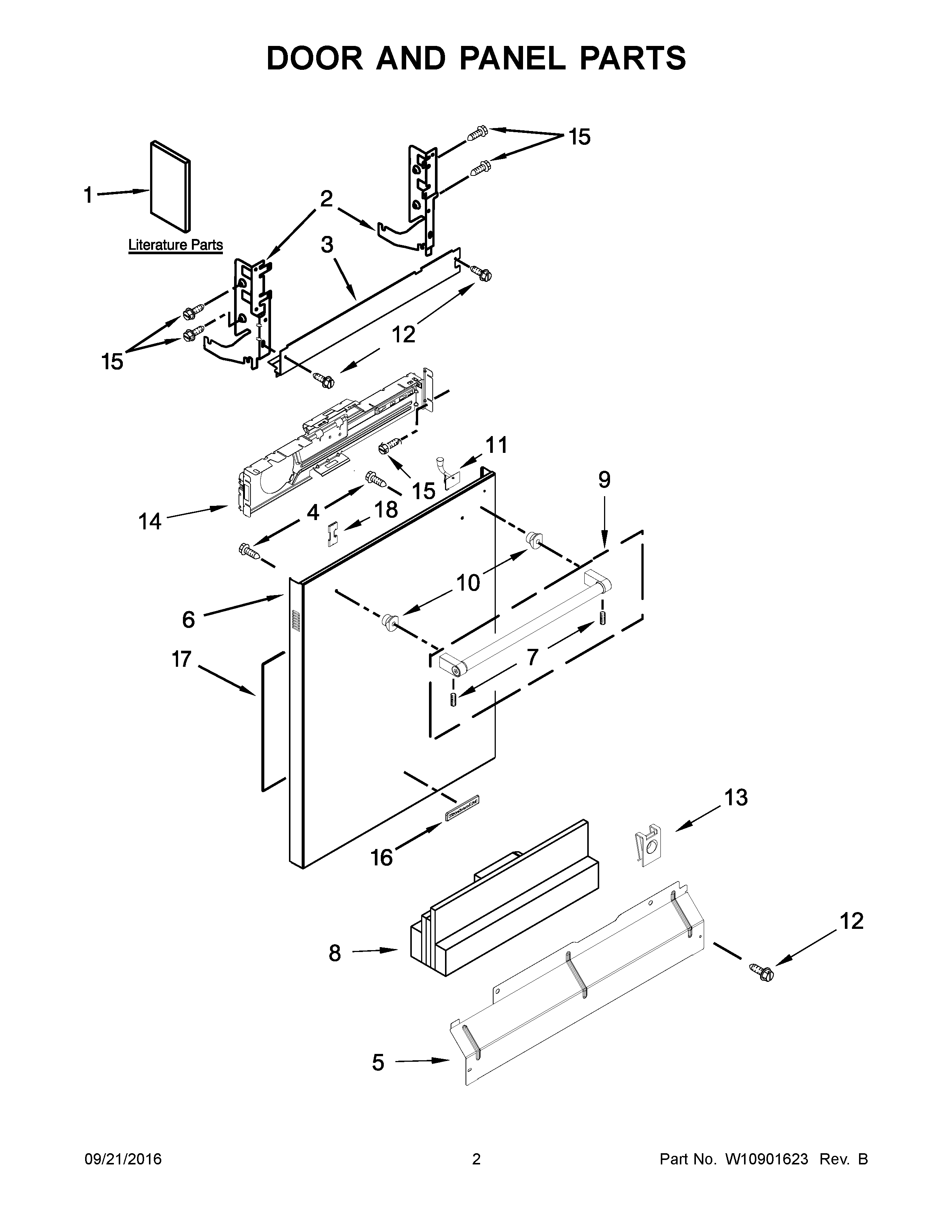

KDTE254EWH2 02 – DOOR AND PANEL PARTS

KDTE254EWH2 02 – DOOR AND PANEL PARTS

Written by

in

KDTE254EWH2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1BUSE & CARE GUIDE
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
5AW10909066 Whirlpool Dishwasher Panel
6BW10900374 Whirlpool Dishwasher Door Panel, Stainless
6AW10901499 Whirlpool Dishwasher Control Panel
6W10901498 Whirlpool Dishwasher Panel
7W10917698 Whirlpool Dishwasher Screw
8SHIELD
9W10708004 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10901145 Whirlpool Dishwasher Indicator Light
12AWPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13W10910629 Whirlpool Dishwasher Nut
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16W10839793 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
18W10692757 Whirlpool Dishwasher Nut Assembly
