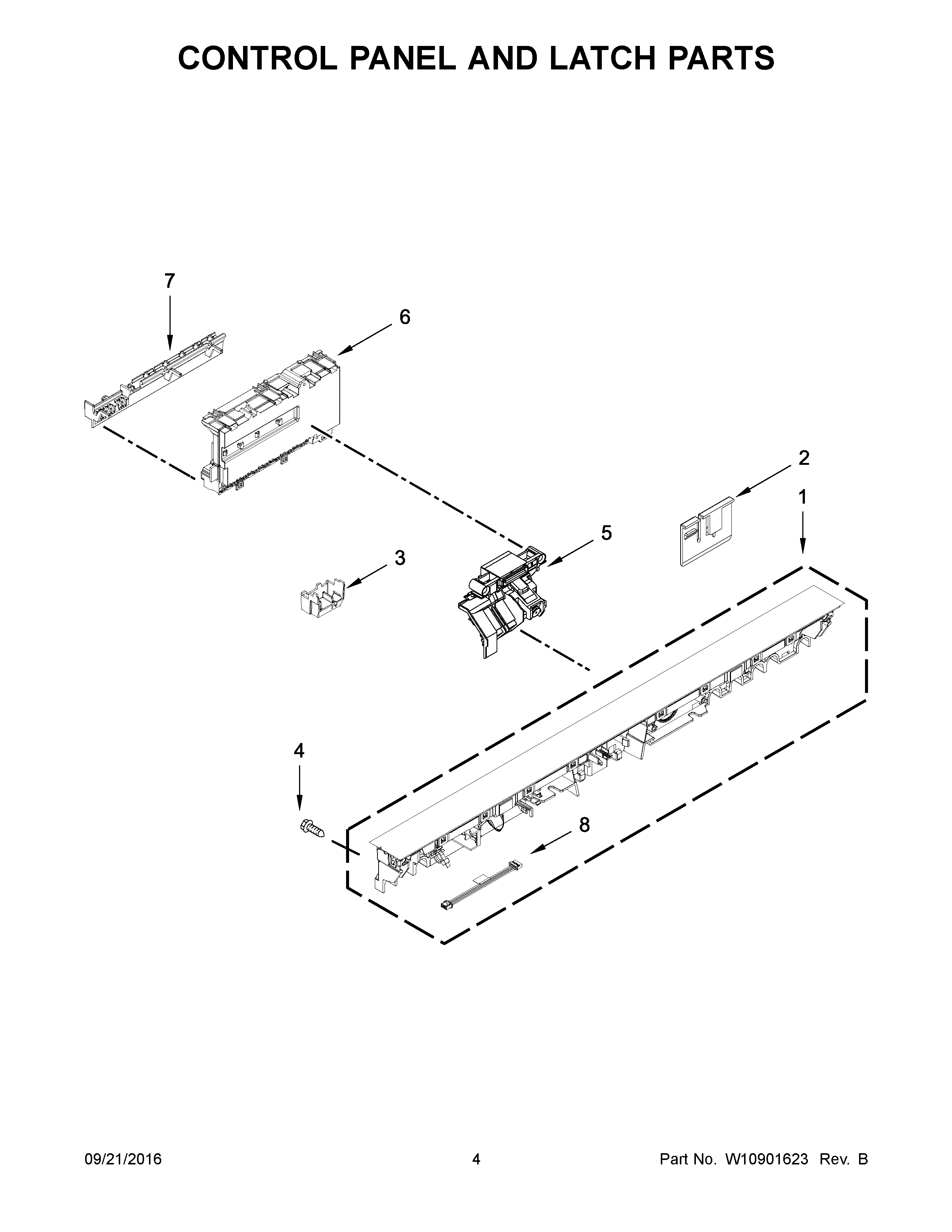

KDTE254EWH2 03 – CONTROL PANEL AND LATCH PARTS

KDTE254EWH2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTE254EWH2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10902370 Whirlpool Dishwasher Control Panel
1AW10902371 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10866124 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8W10566919 Whirlpool Dishwasher Wire
