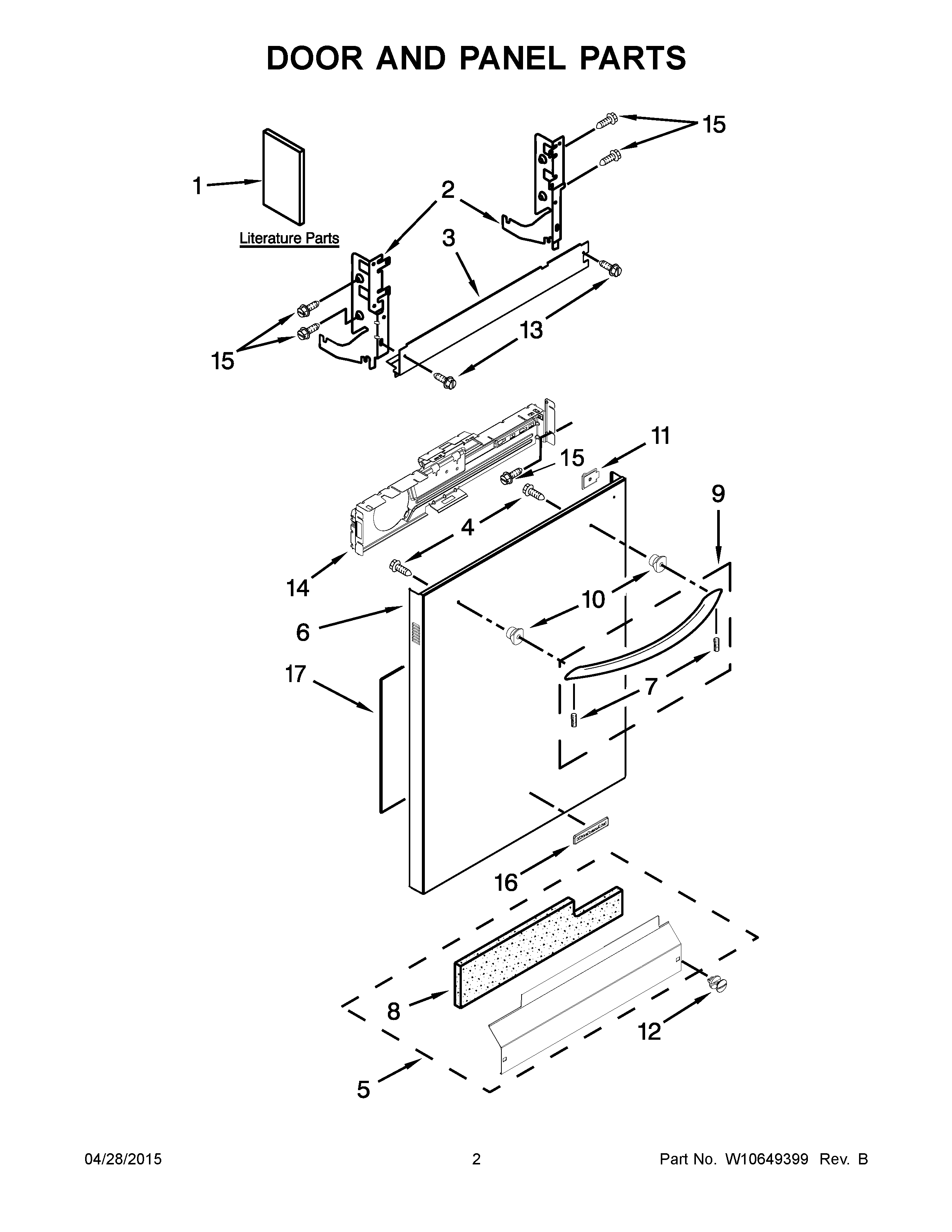

KDTE304DSS0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1C	TECH SHEET, ENGLISH
1D	TECH SHEET, FRENCH
1A	ENERGY GUIDE
1B	USE & CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10826179 Whirlpool Dishwasher Screw
5	W10827631 Whirlpool Toe Panel
5A	W10827632 Whirlpool Dishwasher Control Panel
6B	WPW10195870 Whirlpool Door Outer Panel
6	WPW10195873 Whirlpool Dishwasher Panel
6A	WPW10195872 Whirlpool Dishwasher Panel
7	WPW10307614 Whirlpool Dishwasher Screw
8	SHIELD
9	W10195735A Whirlpool Dishwasher Door Handle Black
9B	W10195738A Whirlpool Stainless Steel Door Handle
9A	W10195736A Whirlpool Dishwasher Handle
10	W11157086 Whirlpool Dishwasher Door Handle Stud
11	W10319007 Whirlpool Dishwasher Indicator Light
12	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12A	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
14	WPW10350242 Whirlpool Dishwasher Control Bracket
15	WP3400071 Whirlpool Screw
16	WPW10243392 Whirlpool Dishwasher Nameplate
16B	WPW10243391 Whirlpool Refrigerator Nameplate
16A	WPW10243393 Whirlpool Dishwasher Nameplate
17	WPW10073520 Whirlpool Dishwasher Insulation Pad
