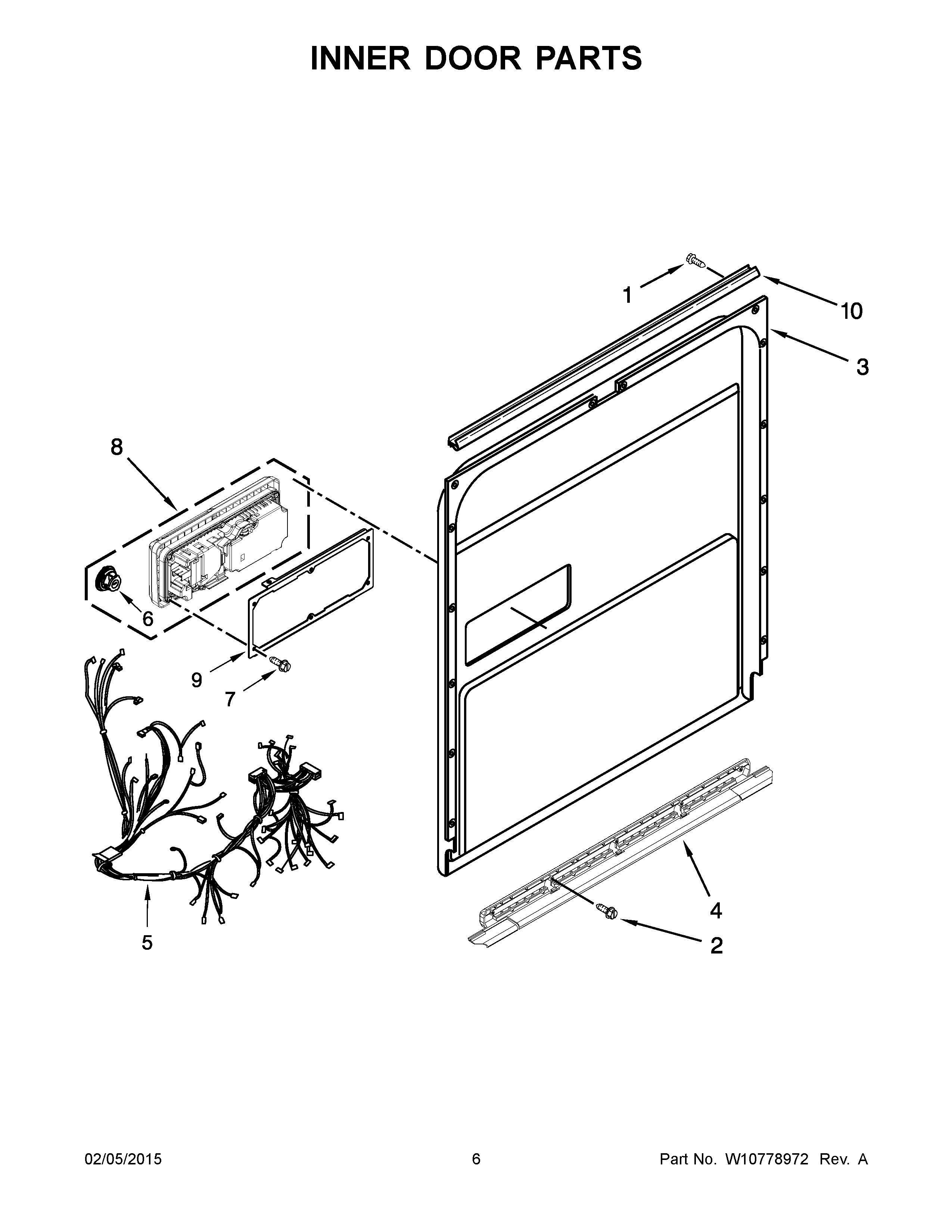

KDTE304DSS1 04 – INNER DOOR PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
2	W11631670 Whirlpool Screw
3	WPW10480715 Whirlpool Dishwasher Inner Door
4	WPW10497235 Whirlpool Dishwasher Lower Door Seal
5	W10744885 Whirlpool Dishwasher Wire Harness
6	WPW10524919 Whirlpool Dishwasher Dispenser Cap
7	WPW10177098 Whirlpool Dishwasher Screw
8	DISPENSER (DISHWASHER)
9	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10	WPW10195007 Whirlpool Dishwasher Seal
