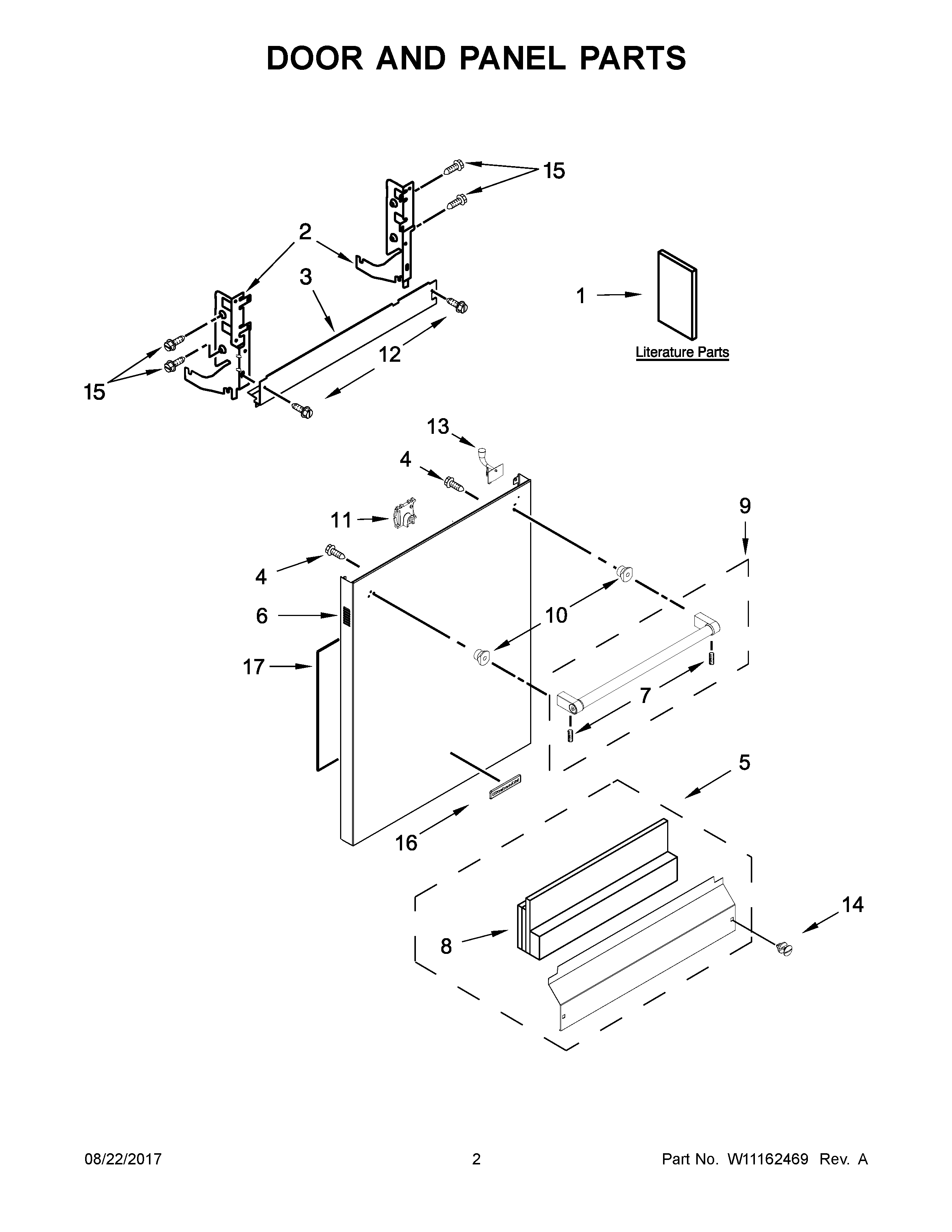

KDTE304GPS0 02 – DOOR AND PANEL PARTS

KDTE304GPS0 02 – DOOR AND PANEL PARTS

Written by

in

KDTE304GPS0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1BUSE & CARE GUIDE
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5WPW10526114 Whirlpool Dishwasher Access Panel
6W11165143 Whirlpool Dishwasher Panel
7W10917698 Whirlpool Dishwasher Screw
8SHIELD
9W10708004 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10692757 Whirlpool Dishwasher Nut Assembly
12WP302868 Whirlpool Screw
13W10901145 Whirlpool Dishwasher Indicator Light
14WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
15WP3400071 Whirlpool Screw
16W10909682 Whirlpool Nameplate Tag
17WPW10073520 Whirlpool Dishwasher Insulation Pad
