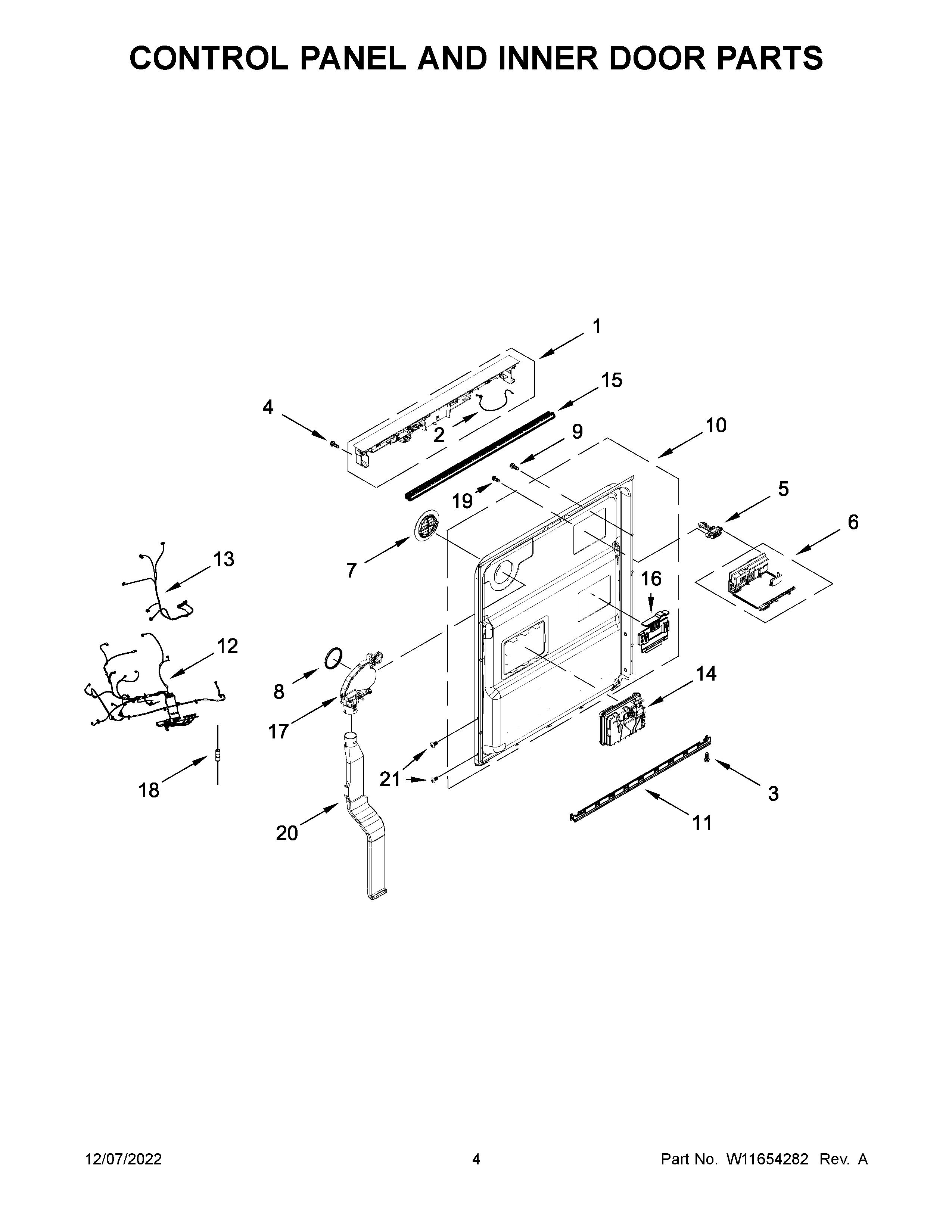

KDTE304LPA1 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

Position	Product
1	W11659646-includeCORE Whirlpool W11659646 Console
2	W11084876 Whirlpool Wire Harness
3	W11627527 Whirlpool Screw
4	WPW10213953 Whirlpool Screw
5	W11412299 Whirlpool Dishwasher Door Latch
6	W11659647-includeCORE Whirlpool Electronic Control
7	W11545290 Whirlpool Deflector
8	W11545539 Whirlpool Gasket Seal
9	WPW10348409 Whirlpool Screw
10	W11559689 Whirlpool Door Inner
11	W11664713 Whirlpool Dishwasher Lower Door Seal
12	W11310586 Whirlpool Wire Harness
13	W11678803 Whirlpool Wire Harness
14	DISPENSER
15	W11412696 Whirlpool Seal
16	W11088985 Whirlpool Bracket Assembly
17	W11414073 Whirlpool Vent Assembly
18	W11397505 Whirlpool Wire Harness
19	W10381476 Whirlpool Dishwasher Screw
20	W11038734 Whirlpool Vent Tube
21	WP3400071 Whirlpool Screw
