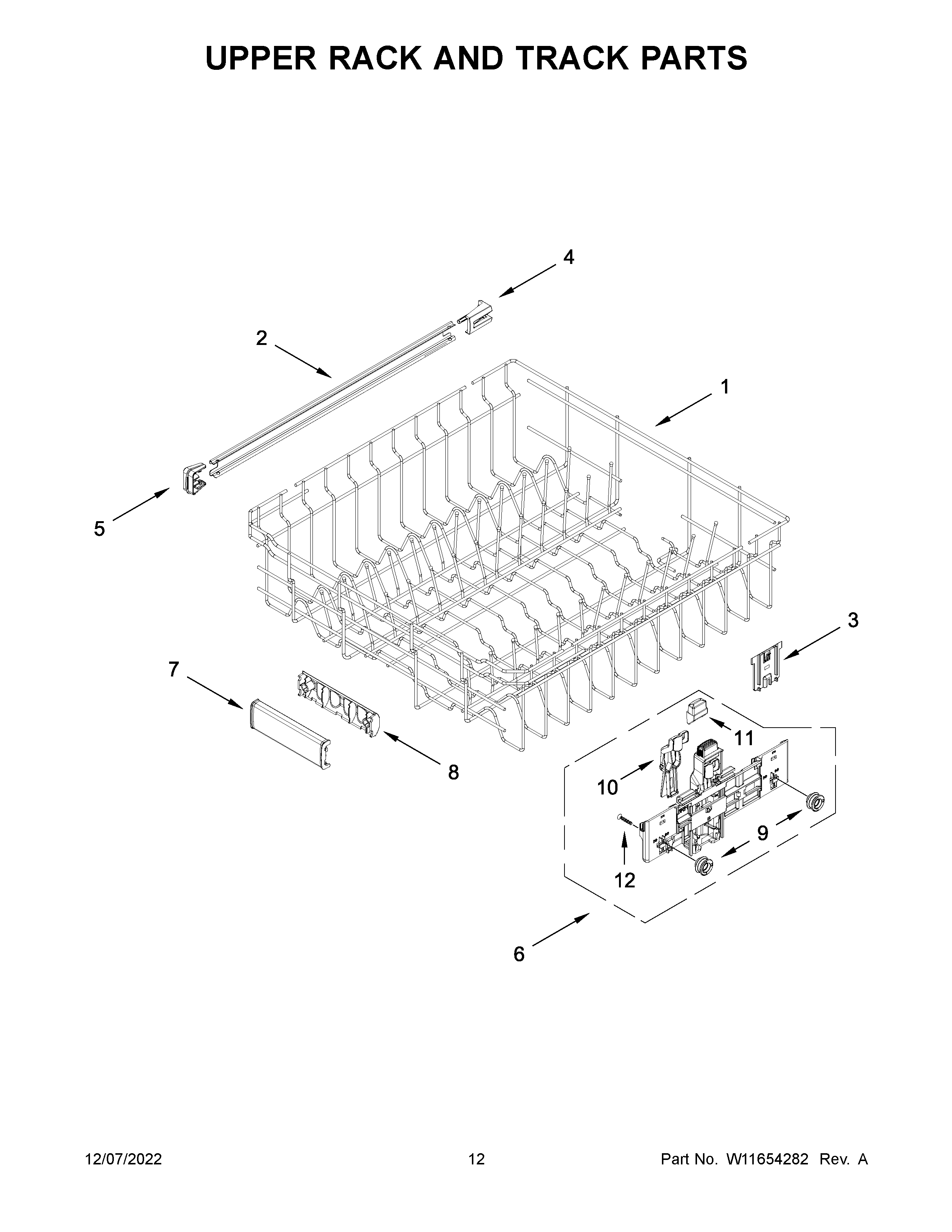

KDTE304LPA1 07 – UPPER RACK AND TRACK PARTS

KDTE304LPA1 07 – UPPER RACK AND TRACK PARTS

Written by

in

KDTE304LPA1 07 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W11678956 Whirlpool Dish Rack
2W11561204 Whirlpool Track Assembly
3W11580020 Whirlpool Positioner
4W11579392 Whirlpool Stop
5W11545307 Whirlpool Dishwasher Rack Stop Clip
6AW11551430 Whirlpool Adjuster
6W11551537 Whirlpool Adjuster
7W11268682 Whirlpool Handle
8W11268681 Whirlpool Handle
9W11545296 Whirlpool Roller
10W11180178 Whirlpool Positioner
11BUTTON, ADJUSTER ARM
12W11708397 Whirlpool Screw
