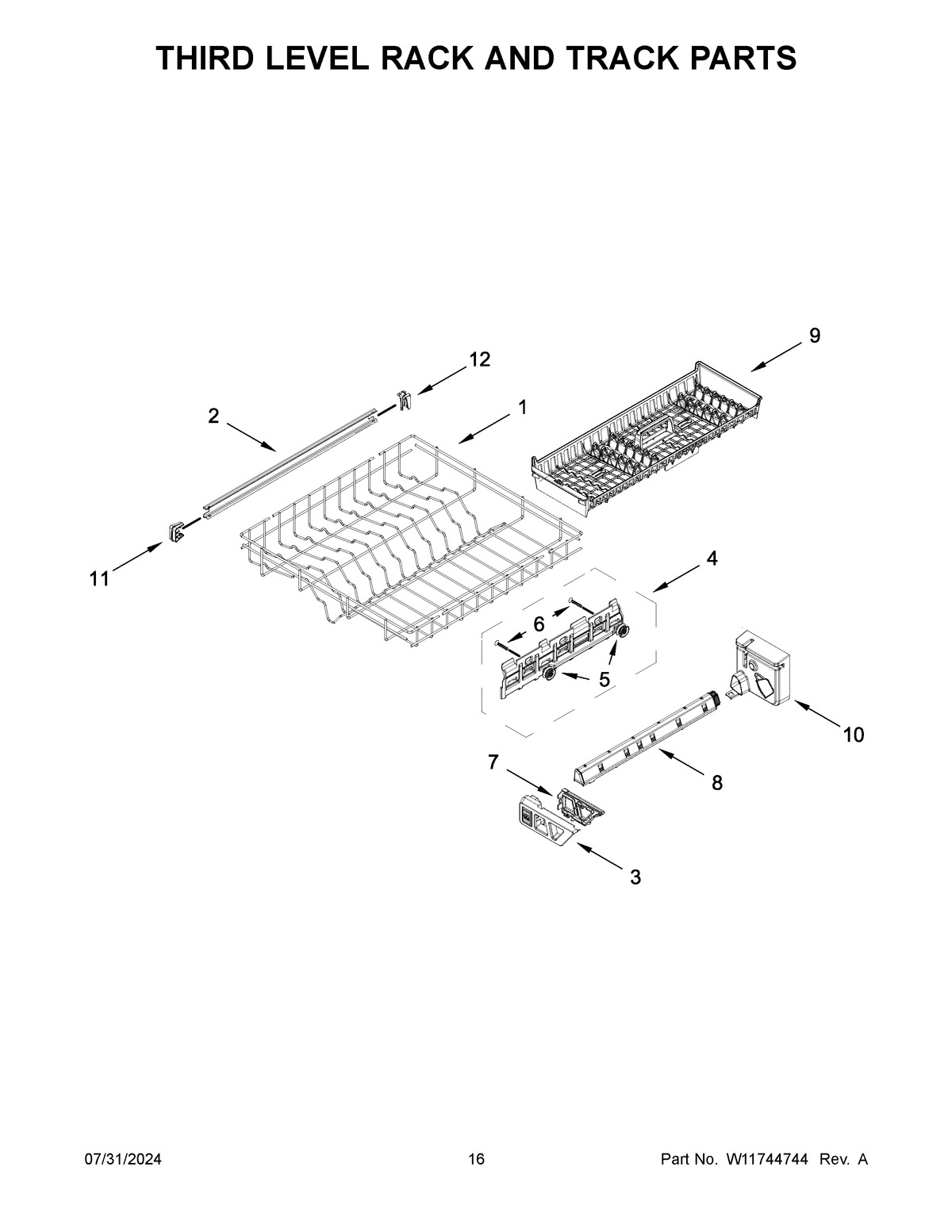

KDTE304RBS0 09 – THIRD LEVEL RACK AND TRACK PARTS

KDTE304RBS0 09 – THIRD LEVEL RACK AND TRACK PARTS

Written by

in

KDTE304RBS0 09 – THIRD LEVEL RACK AND TRACK PARTS

Products

PositionProduct
1W11127770 Whirlpool Dishrack
2W11561204 Whirlpool Track Assembly
3W11305291 Whirlpool Manifold
4W11662340 Whirlpool Dryer Mount
4AW11675848 Whirlpool Rack Mount Support
5W11568789 Whirlpool Wheel
6W11708397 Whirlpool Screw
7W11193057 Whirlpool Manifold Assembly
8W11175552 Whirlpool Feed Tube Assembly
9W11690650 Whirlpool Basket Ware
10W11175564 Whirlpool Manifold Assembly
11W11545307 Whirlpool Dishwasher Rack Stop Clip
12W11579392 Whirlpool Stop
