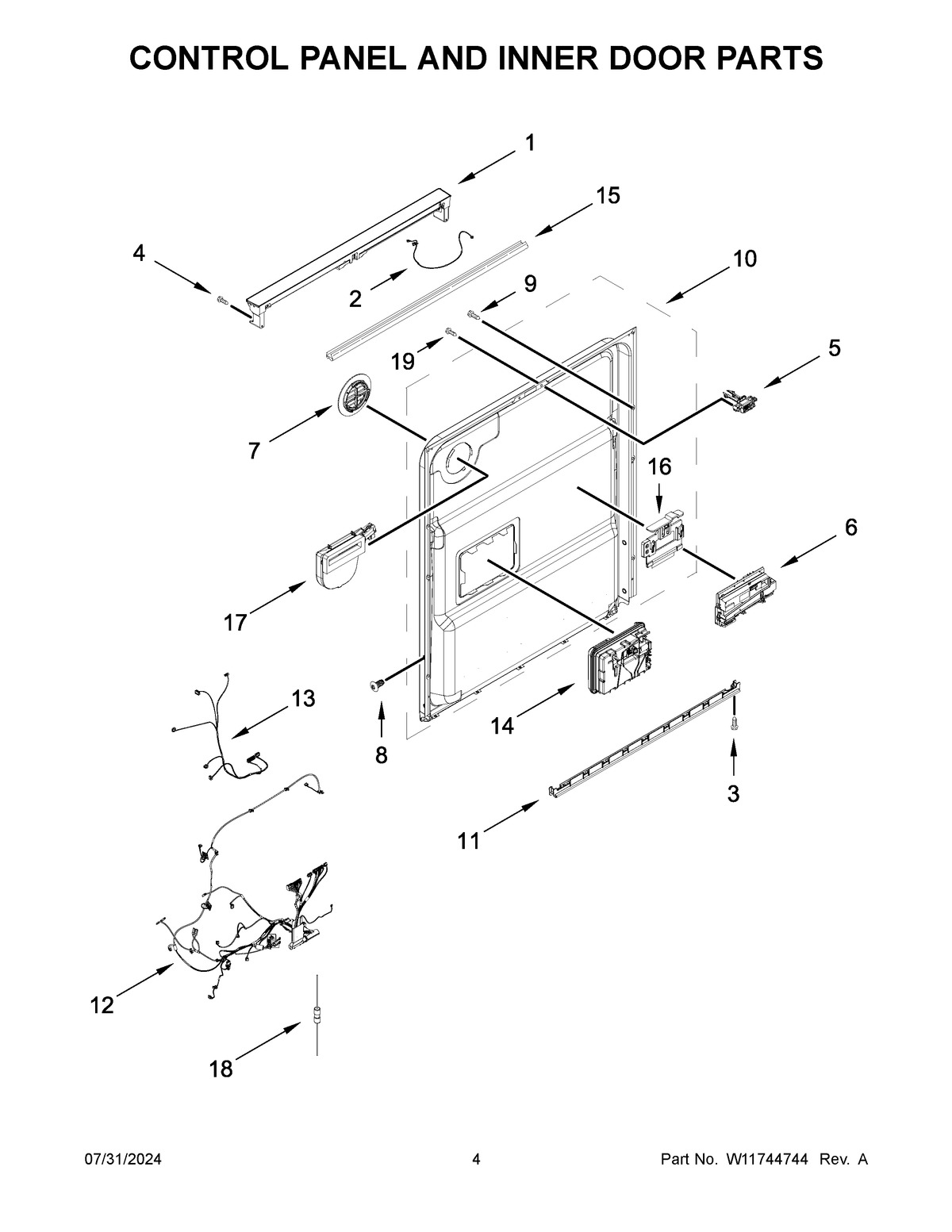

KDTE304RPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

KDTE304RPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

KDTE304RPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11622500 Whirlpool Console + Core
2W11690158 Whirlpool Wire Harness
3W11627527 Whirlpool Screw
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
7W11545290 Whirlpool Deflector
8WP3400071 Whirlpool Screw
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12HARNS-WIRE
13W11685311 Whirlpool Wire Harness
14DISPENSER
15W11213719 Whirlpool Dishwasher Seal
16W11088985 Whirlpool Bracket Assembly
17VENT
18W11397505 Whirlpool Wire Harness
19WPW10348408 Whirlpool Dishwasher Screw
