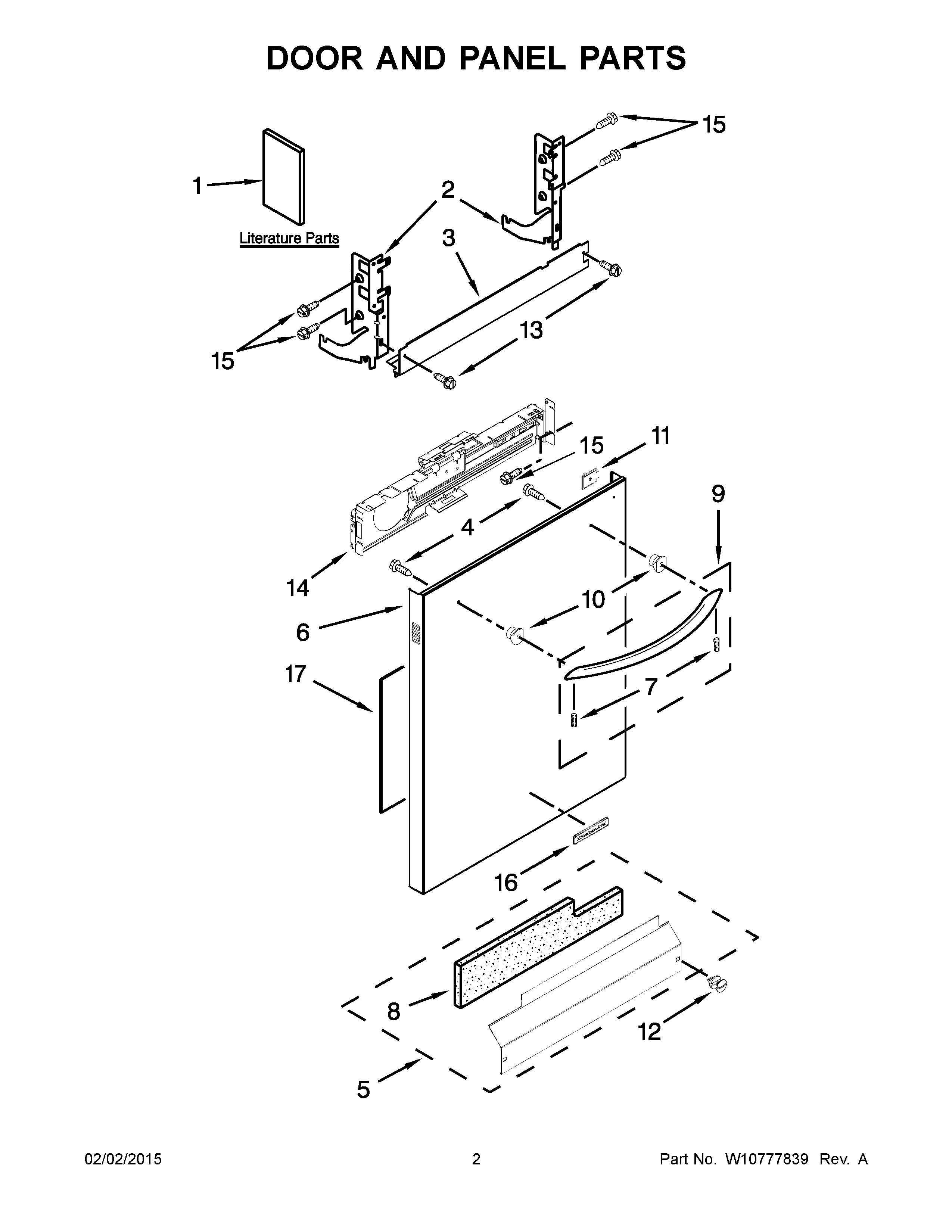

KDTE334DSS1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1AENERGY GUIDE
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10827631 Whirlpool Toe Panel
6WPW10195870 Whirlpool Door Outer Panel
7WPW10307614 Whirlpool Dishwasher Screw
8SHIELD
9W10195738A Whirlpool Stainless Steel Door Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10610052 Whirlpool Dishwasher Indicator Light
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
13WP489069 Whirlpool Compactor Screw
14WPW10350242 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
17WPW10073520 Whirlpool Dishwasher Insulation Pad
