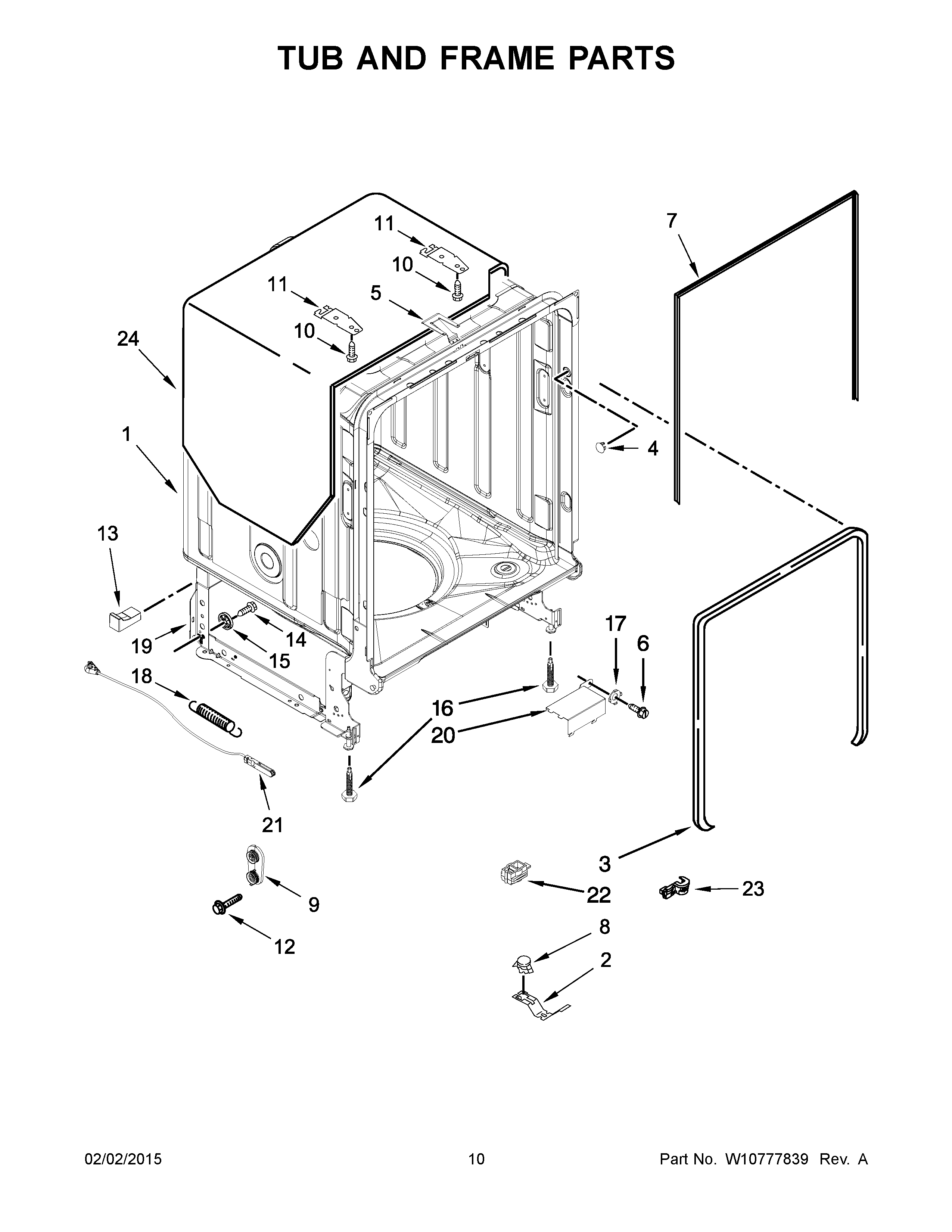

KDTE334DSS1 06 – TUB AND FRAME PARTS

Written by

Products

Position	Product
1	WPW10681506 Whirlpool Dishwasher Tub
2	W10300703 Whirlpool Dishwasher Bracket Stat
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10544004 Whirlpool Dishwasher Strike
6	WP3400014 Whirlpool Dishwasher Screw
7	SEAL
8	WPW10195091 Whirlpool Thermostat
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	W10195630 Whirlpool Dishwasher Spacer
13A	W10195631 Whirlpool Dishwasher Tank Spacer
14	WPW10348411 Whirlpool Roller Wheel Screw
15	WPW10190778 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP3378128 Whirlpool Dishwasher Washer
18	SPRING
19	WPW10681564 Whirlpool Dishwasher Support
20	W10847918 Whirlpool Dishwasher Cover
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	W10292870 Whirlpool Dishwasher Housing
23	STRAIN RELIEF
24	W11086533 Whirlpool Dishwasher Shield
