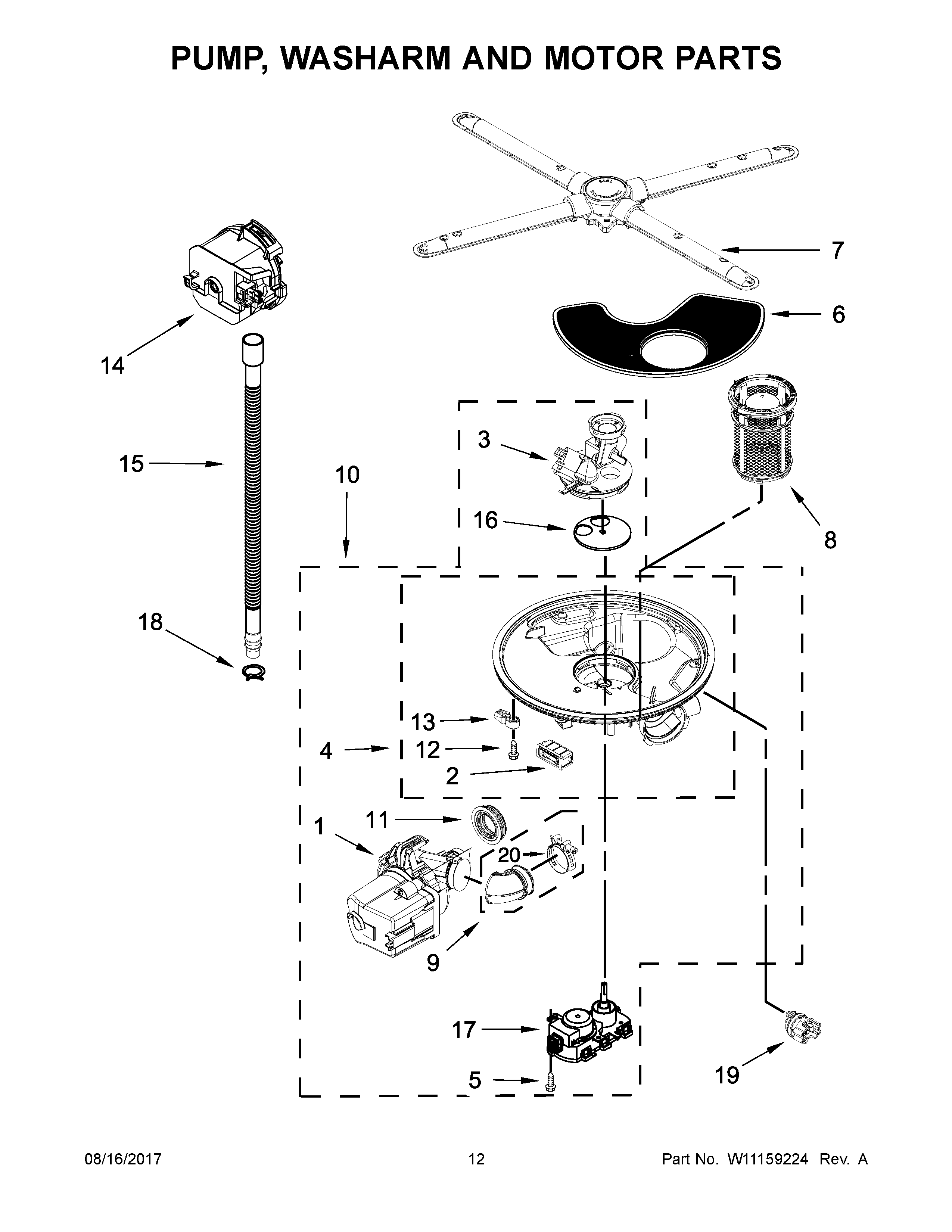

KDTE334GPS0 07 – PUMP, WASHARM AND MOTOR PARTS

KDTE334GPS0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

KDTE334GPS0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W10894668 Whirlpool Dishwasher Pump Motor
2W11243394 Whirlpool Dishwasher Support
3W11245091 Whirlpool Dishwasher Cover
4WPW10455268 Whirlpool Sump
5WP9741232 Whirlpool Dishwasher Screw
6WPW10463906 Whirlpool Dishwasher Screen Filter Cover
7ARM-SPRAY
8W10872845 Whirlpool Dishwasher Filter Cup Trap
9W10730897 Whirlpool Hose Assembly
10PUMP&MOTOR
11WPW10538166 Whirlpool Grommet Pump
12WPW10348407 Whirlpool Dishwasher Screw
13WPW10372113 Whirlpool Dishwasher Sump Tab
14WPW10531320 Whirlpool Drain Pump
158269144A Whirlpool Dishwasher Drain Hose
16WPW10476221 Whirlpool Dishwasher Diffuser
17W10537869 Whirlpool Dishwasher Motor
18WP8269146 Whirlpool Dishwasher Clamp
19W11084121 Whirlpool Sensor Turbidity
