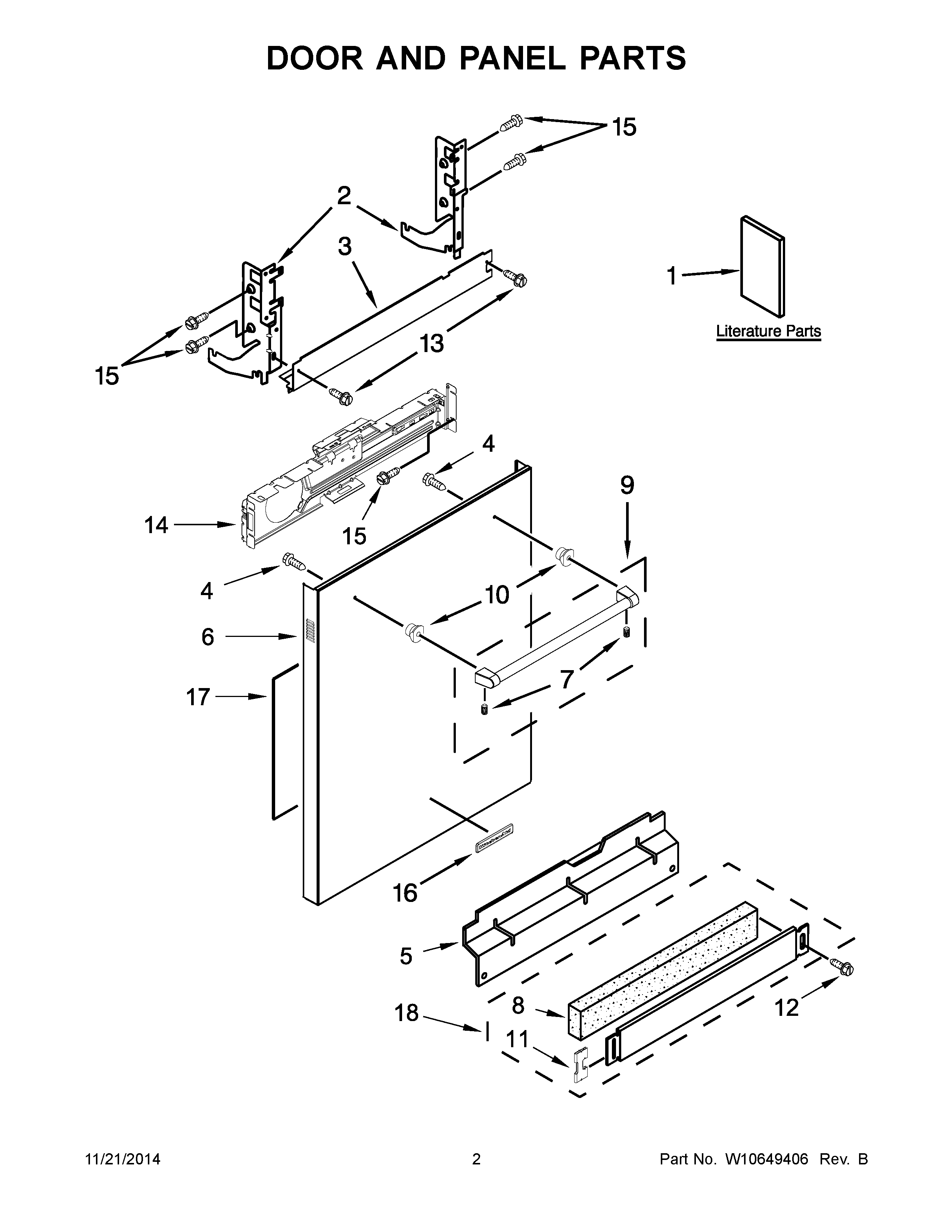

KDTE404DSP0 02 – DOOR AND PANEL PARTS

KDTE404DSP0 02 – DOOR AND PANEL PARTS

Written by

in

KDTE404DSP0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1AUSE & CARE GUIDE
1INSTRUCTIONS, INSTALLATION
1BENERGY GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10195874 Whirlpool Dishwasher Panel
7W10320946 Whirlpool Dishwasher Screw
8SHIELD
9HANDLE ASSEMBLY (STAINLESS)
10W11157086 Whirlpool Dishwasher Door Handle Stud
11WP8269016 Whirlpool Clip Assembly
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WPW10350242 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10320959 Whirlpool Dishwasher Nameplate
17WPW10073520 Whirlpool Dishwasher Insulation Pad
