KDTE404DWH0 08 – UPPER WASH AND RINSE PARTS

KDTE404DWH0 08 – UPPER WASH AND RINSE PARTS

Written by

in

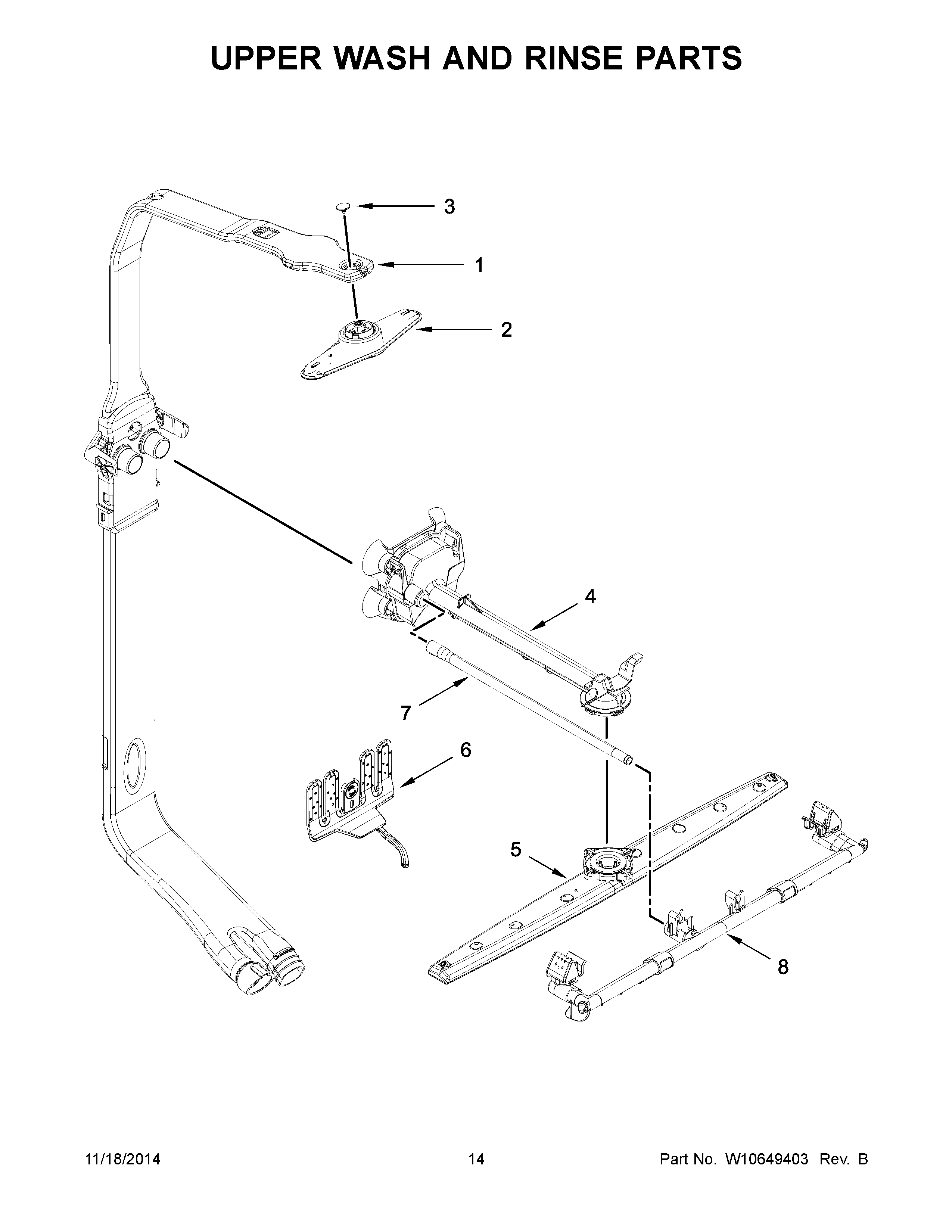

KDTE404DWH0 08 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1W10861745 Whirlpool Feed Tube
2WPW10327455 Whirlpool Dishwasher Spray Arm
3WP3400918 Whirlpool Fastener
4W10843168 Whirlpool Dishwasher Manifold
5WPW10448645 Whirlpool Dishwasher Upper Spray Arm
6W10554961 Whirlpool Dishwasher Manifold
7W10355006 Whirlpool Dishwasher Tube
8W10622462 Whirlpool Dishwasher Manifold
