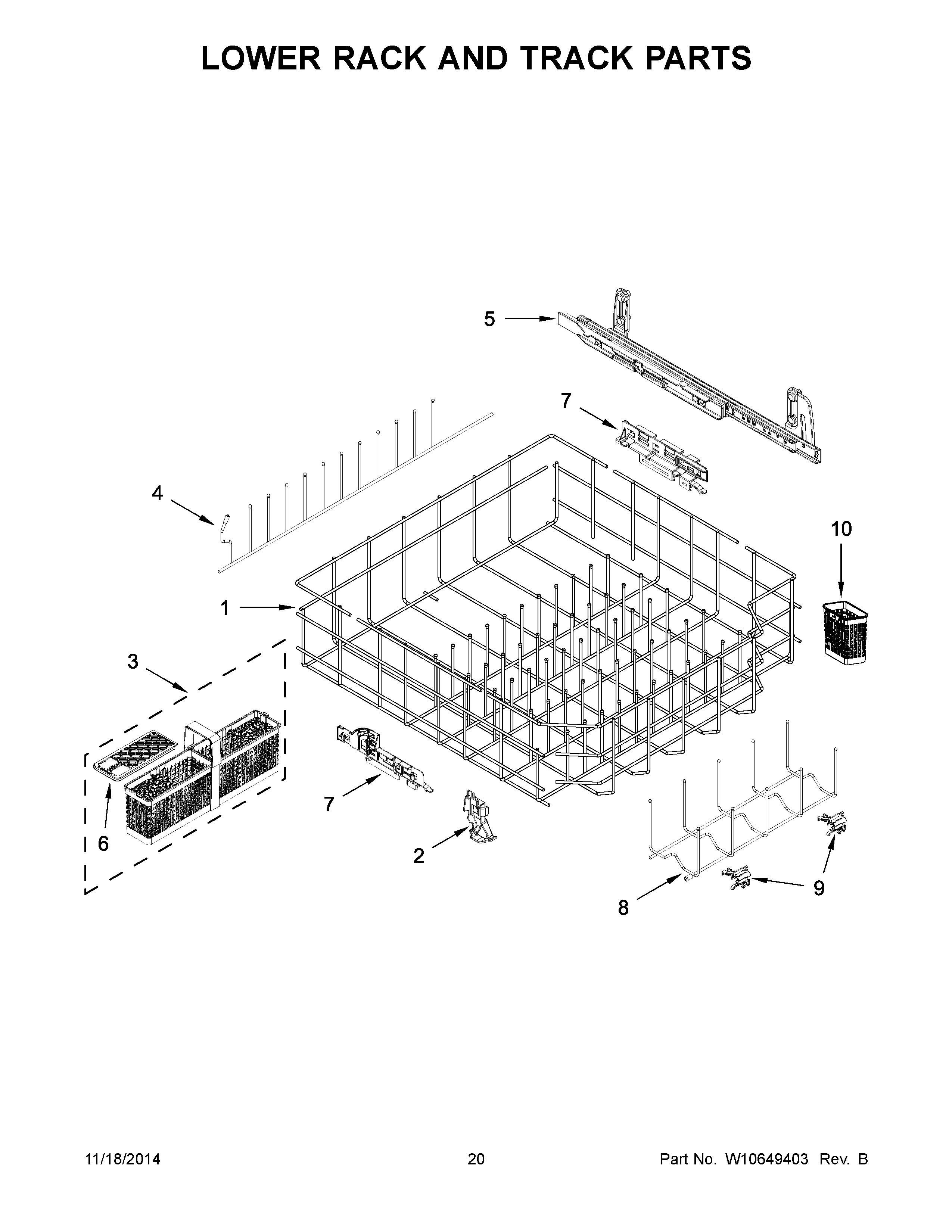

KDTE404DWH0 11 – LOWER RACK AND TRACK PARTS

KDTE404DWH0 11 – LOWER RACK AND TRACK PARTS

Written by

in

KDTE404DWH0 11 – LOWER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, LOWER
2AW11197023 Whirlpool Dishwasher Support
2W11193827 Whirlpool Dishwasher Support
3WPW10473836 Whirlpool Silverware Basket
4W10728160 Whirlpool Tine Assembly
5AW10822166 Whirlpool Dishwasher Track
5W10822165 Whirlpool Slide Rail
6WPW10473835 Whirlpool Dishwasher Lid
7WPW10473807 Whirlpool Dishwasher Support
7AWPW10473809 Whirlpool Dishwasher Support
8W10554952 Whirlpool Dishwasher Tine Row
9W11213333 Whirlpool Dishwasher Retainer
10WPW10482109 Whirlpool Dishwasher Basket Ware
