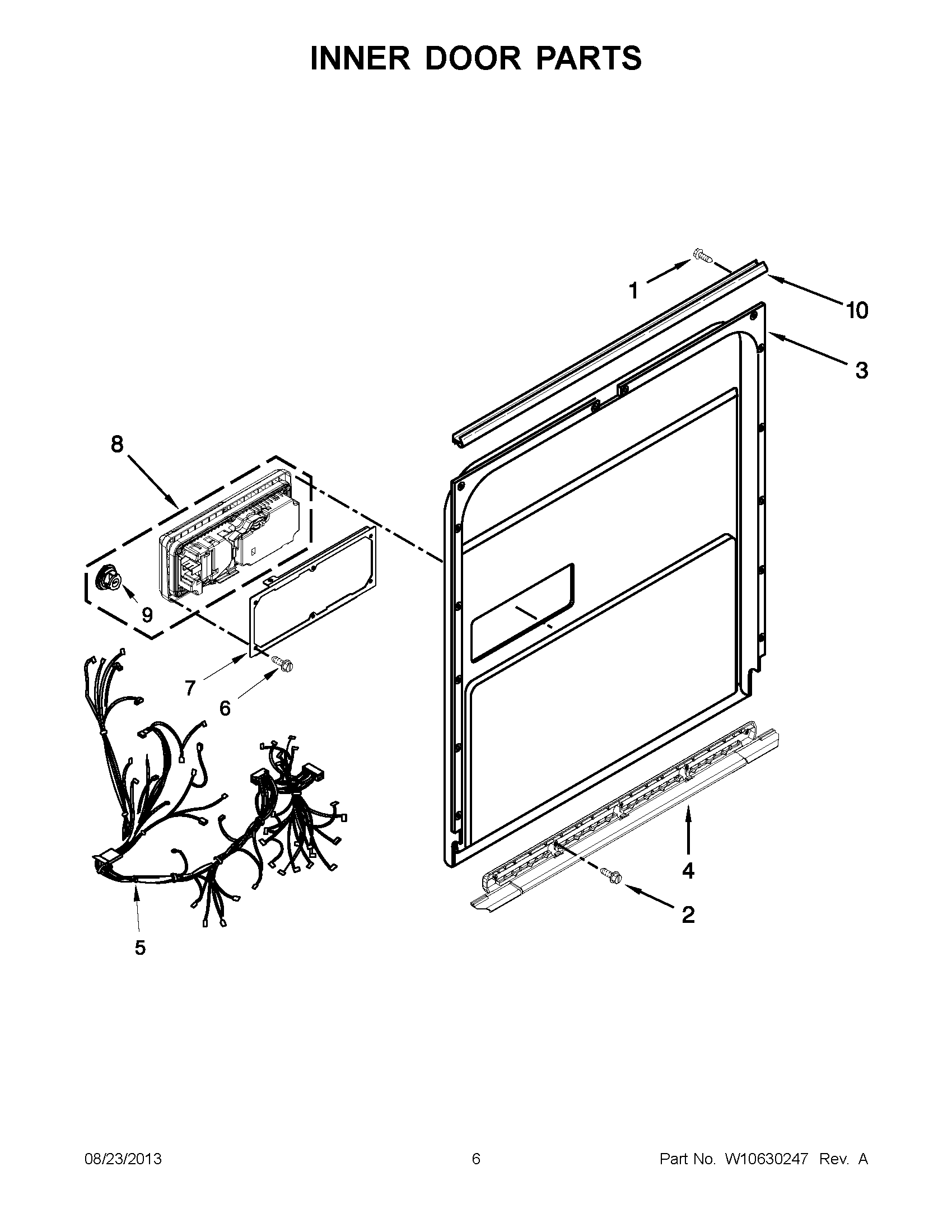

KDTE554CSS0 04 – INNER DOOR PARTS

KDTE554CSS0 04 – INNER DOOR PARTS

Written by

in

KDTE554CSS0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480716 Whirlpool Dishwasher Inner Door Assembly
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5W10566906 Whirlpool Dishwasher Wire Harness
6WPW10177098 Whirlpool Dishwasher Screw
7WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
8DISPENSER (DISHWASHER)
9WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
10WPW10195007 Whirlpool Dishwasher Seal
