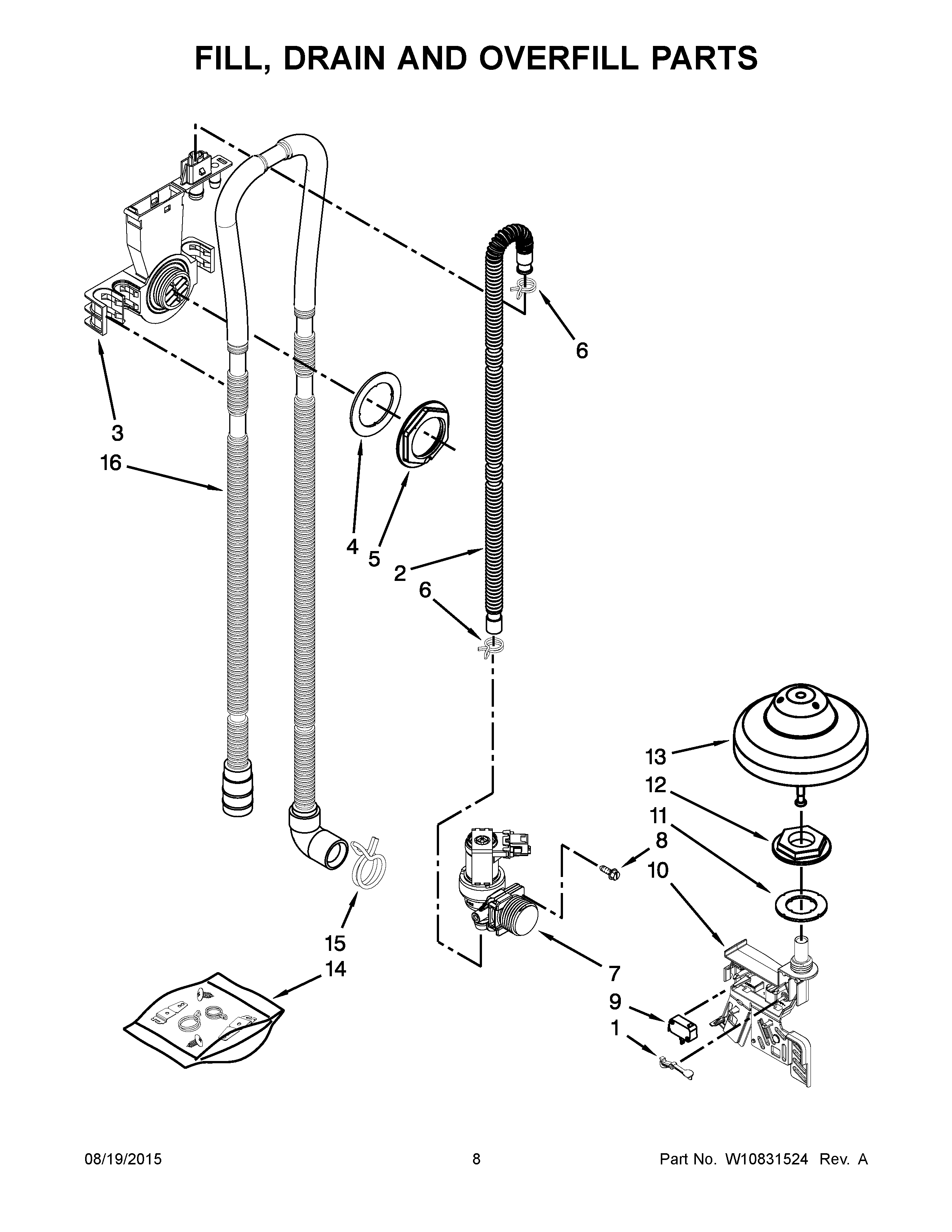

KDTE554CSS3 05 – FILL, DRAIN AND OVERFILL PARTS

Products

Position	Product
1	WPW10195037 Whirlpool Lever Assembly
2	W10878507 Whirlpool Inlet Hose
3	W11676544 Whirlpool Water Inlet
4	WP8531323 Whirlpool Gasket Seal
5	WPW10213825 Whirlpool Dishwasher Tube Nut
6	WP596669 Whirlpool Hose Clamp
7	W10648041 Whirlpool Water Inlet Valve
8	WP489069 Whirlpool Compactor Screw
9	WPW10195039 Whirlpool Dishwasher Float Switch
10	W10873429 Whirlpool Housing
11	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12	WPW10195038 Whirlpool Dishwasher Nut
13	WPW10195036 Whirlpool Dishwasher Float
14	WPW10292152 Whirlpool Hardware Kit
15	WP285655 Whirlpool Hose Clamp
16	WPW10545278 Whirlpool Drain Hose
