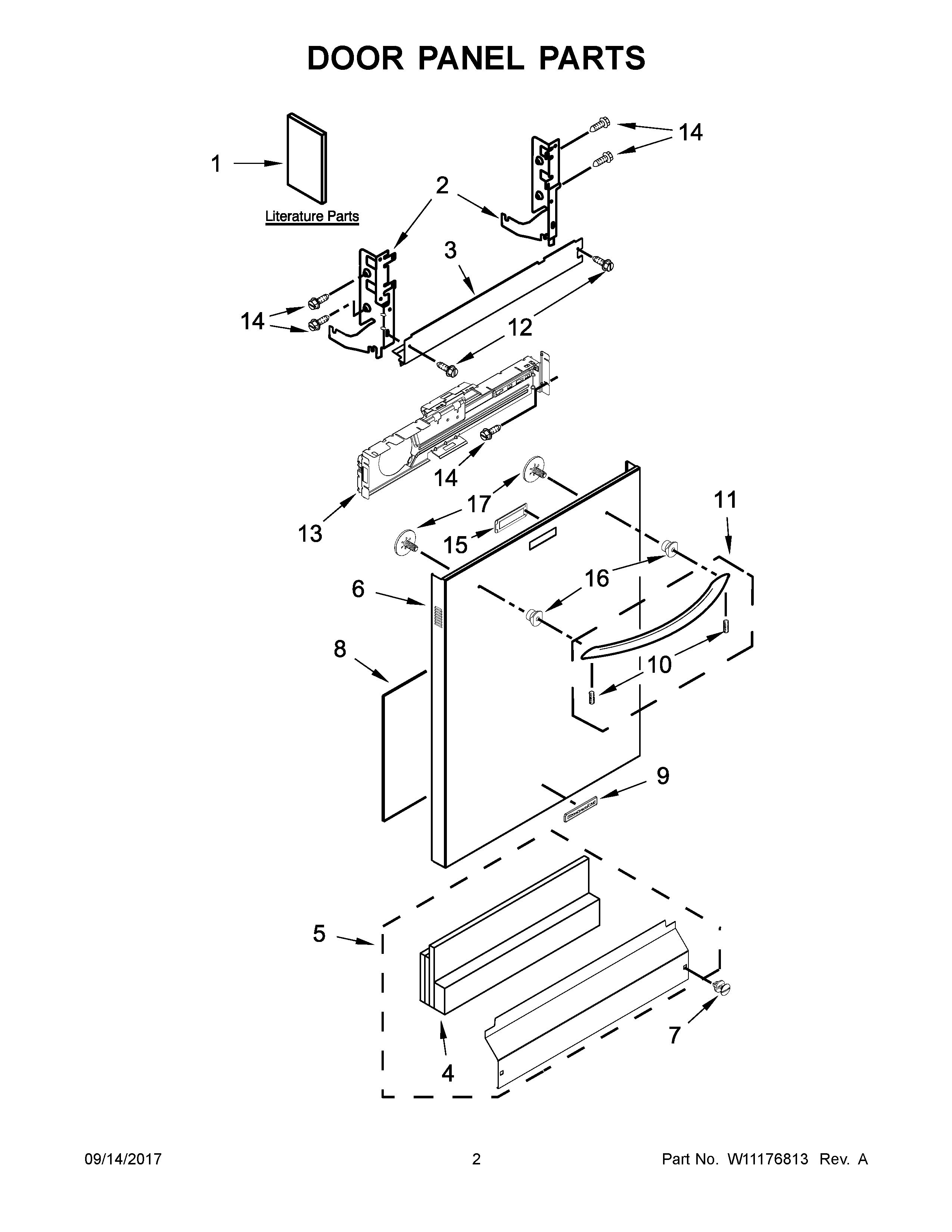

KDTE554CSS4 02 – DOOR PANEL PARTS

KDTE554CSS4 02 – DOOR PANEL PARTS

Written by

in

KDTE554CSS4 02 – DOOR PANEL PARTS

Products

PositionProduct
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1AENERGY GUIDE
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10195869 Whirlpool Control Panel
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W11126003 Whirlpool Dishwasher Insulation Pad
9WPW10243391 Whirlpool Refrigerator Nameplate
10WPW10307614 Whirlpool Dishwasher Screw
11W10195738A Whirlpool Stainless Steel Door Handle
12WP302868 Whirlpool Screw
13WPW10350242 Whirlpool Dishwasher Control Bracket
14WP3400071 Whirlpool Screw
15W10457051 Whirlpool Dishwasher Display Lens
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10826179 Whirlpool Dishwasher Screw
