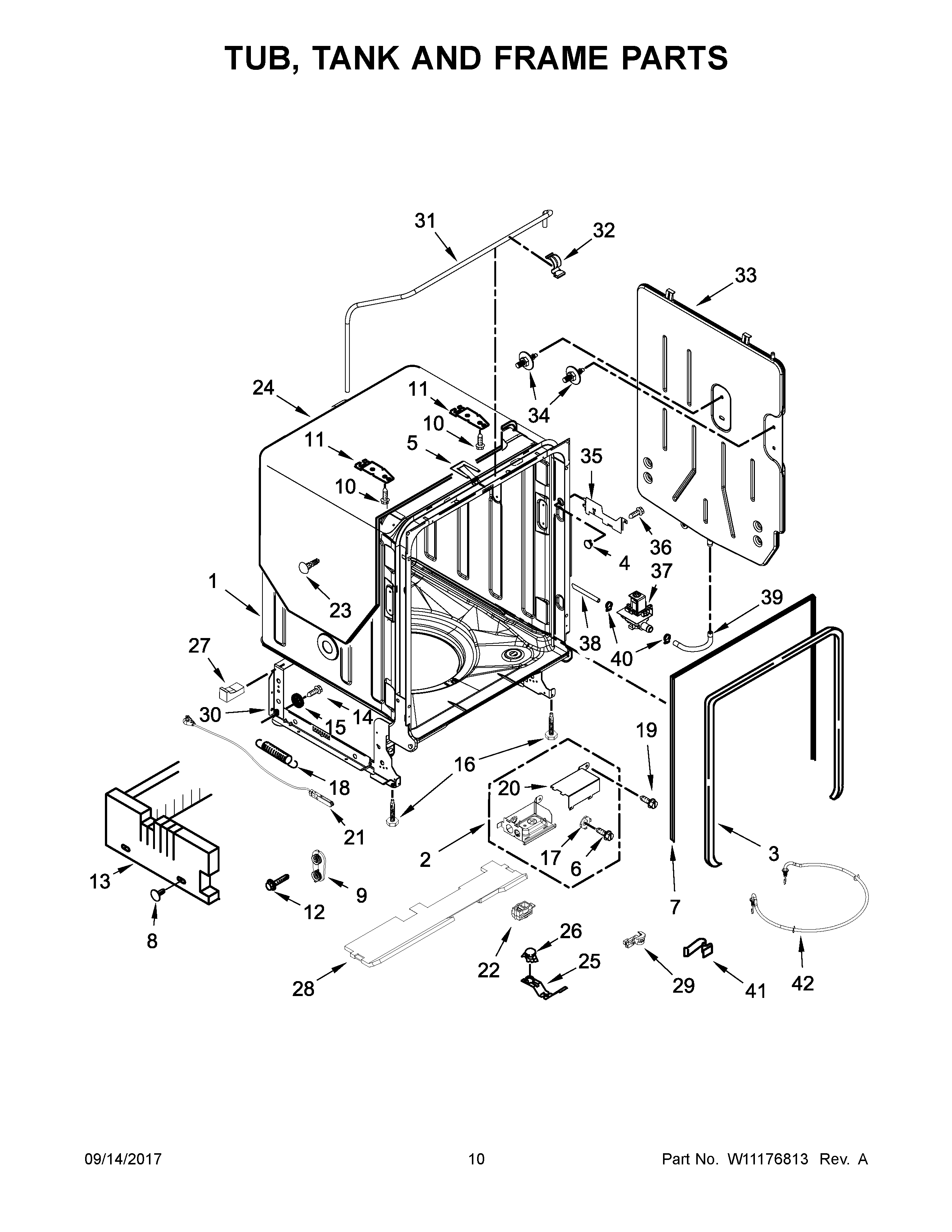

KDTE554CSS4 06 – TUB, TANK AND FRAME PARTS

KDTE554CSS4 06 – TUB, TANK AND FRAME PARTS

Written by

in

KDTE554CSS4 06 – TUB, TANK AND FRAME PARTS

Products

Position	Product
1	WPW10681507 Whirlpool Dishwasher Tub
2	W11167239 Whirlpool Dishwasher Cover Assembly
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10544004 Whirlpool Dishwasher Strike
6	WP3400014 Whirlpool Dishwasher Screw
7	SEAL
8	WPW10486051 Whirlpool Dishwasher Retainer
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	W10750120 Whirlpool Shield
14	WPW10348411 Whirlpool Roller Wheel Screw
15	WPW10190778 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP3378128 Whirlpool Dishwasher Washer
18	SPRING
19	WP3400892 Whirlpool Dishwasher Screw
20	W10847918 Whirlpool Dishwasher Cover
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	W10292870 Whirlpool Dishwasher Housing
23	WP304666 Whirlpool Dishwasher Retainer
24	W10577141 Whirlpool Shield
25	W10300703 Whirlpool Dishwasher Bracket Stat
26	WPW10195091 Whirlpool Thermostat
27	W10195630 Whirlpool Dishwasher Spacer
27A	W10195631 Whirlpool Dishwasher Tank Spacer
28	W11747584 Whirlpool Insulation Pad
29	STRAIN RELIEF
30	WPW10681564 Whirlpool Dishwasher Support
31	W10576564 Whirlpool Dishwasher Drain Hose
32	CLIP, HOSE
33	W10576448 Whirlpool Dishwasher Water Tank
34	SCREW (RIGHT HAND)
35	W10584473 Whirlpool Bracket
36	WP489069 Whirlpool Compactor Screw
37	W10576551 Whirlpool Dishwasher Solenoid
38	W10576563 Whirlpool Dishwasher Drain Hose
39	W10584472 Whirlpool Drain Hose
40	WP489503 Whirlpool Refrigerator Clamp
41	8528351 Whirlpool Clip
42	W10703867 Whirlpool Dishwasher Heating Element
