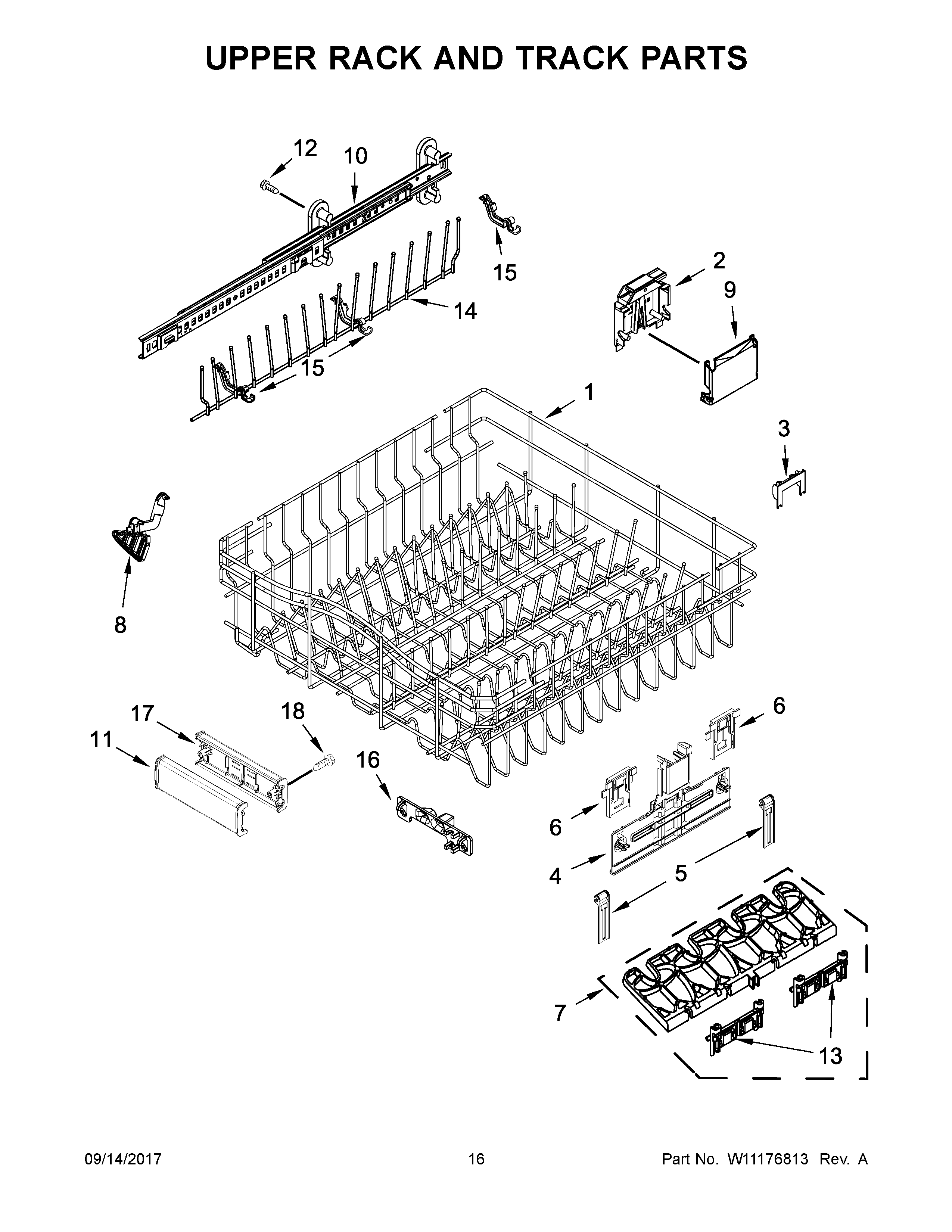

KDTE554CSS4 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10728863 Whirlpool Upper Dishrack Assembly
2AWPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8W10919676 Whirlpool Dishwasher Dispenser Guard Clip
9COVER
10AW11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
10W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
12WPW10309090 Whirlpool Dishwasher Screw
12ASCREW (RIGHT HAND)
13WPW10082848 Whirlpool Clip
14W10727426 Whirlpool Dishwasher Rack Tine
15WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
16WP8539102 Whirlpool Dishwasher Positioner
17W11110542 Whirlpool Dishwasher Handle
18WP9741232 Whirlpool Dishwasher Screw
