KDTE704DPA0 02 – DOOR AND PANEL PARTS
Written by
in

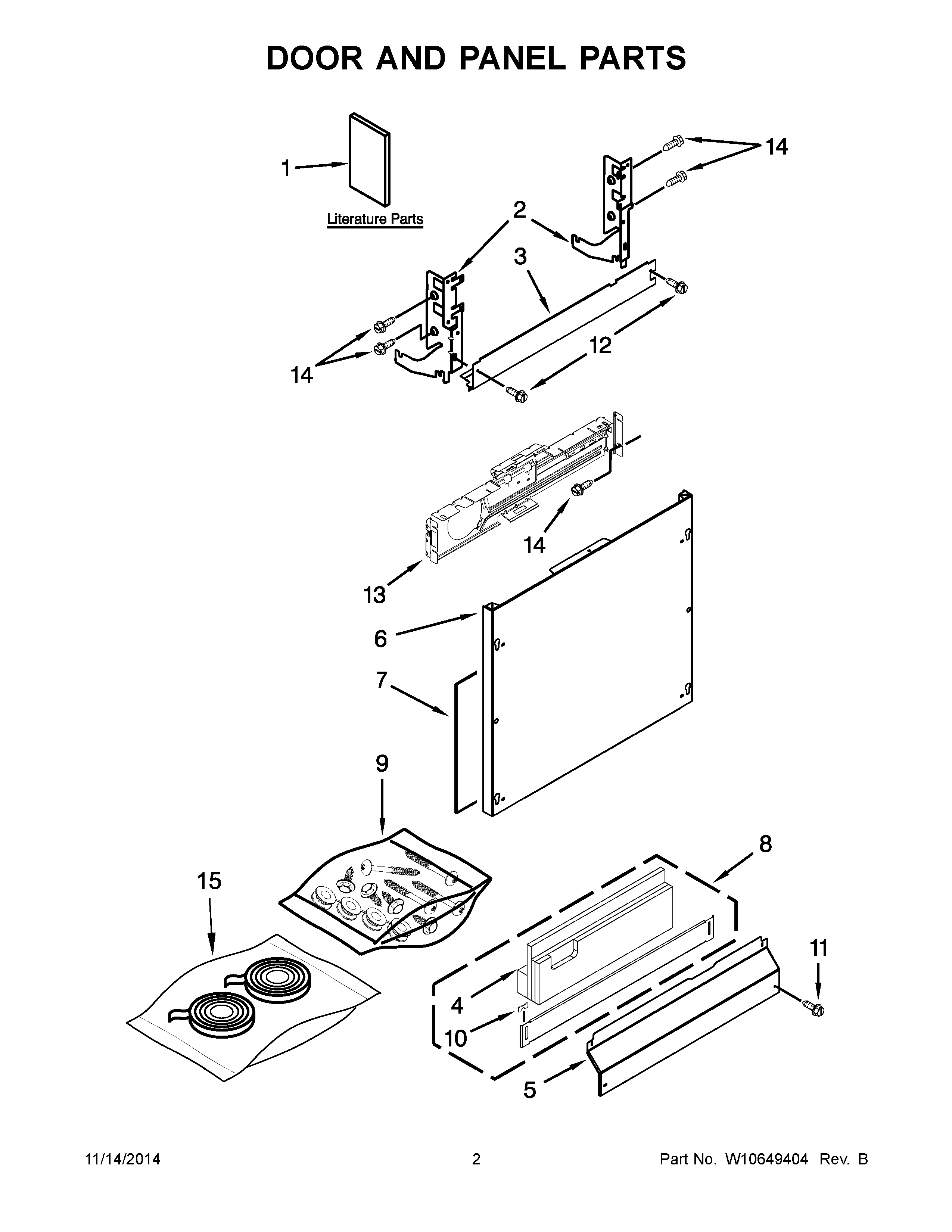

KDTE704DPA0 02 – DOOR AND PANEL PARTS
Products
Position
Product
1D
TECH SHEET, FRENCH
1B
USE & CARE GUIDE
1
INSTRUCTIONS, INSTALLATION
1C
TECH SHEET, ENGLISH
1E
TEMPLATE, 6" CUSTOM PANEL
1A
ENERGY GUIDE
2A
W11612303 Whirlpool Door Hinge
2
W11612302 Whirlpool Dishwasher Door Hinge
3
W10850371 Whirlpool Dishwasher Door Brace
4
SHIELD
5
W10909064 Whirlpool Dishwasher Black Access Panel
6
W11113792 Whirlpool Dishwasher Panel
7
W10234565 Whirlpool Dishwasher Insulation Pad
9
WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
10
WP8269016 Whirlpool Clip Assembly
11
WP302868 Whirlpool Screw
12
WP489069 Whirlpool Compactor Screw
13
WPW10350242 Whirlpool Dishwasher Control Bracket
14
WP3400071 Whirlpool Screw
15
WPW10366978 Whirlpool Dishwasher Seal
←
