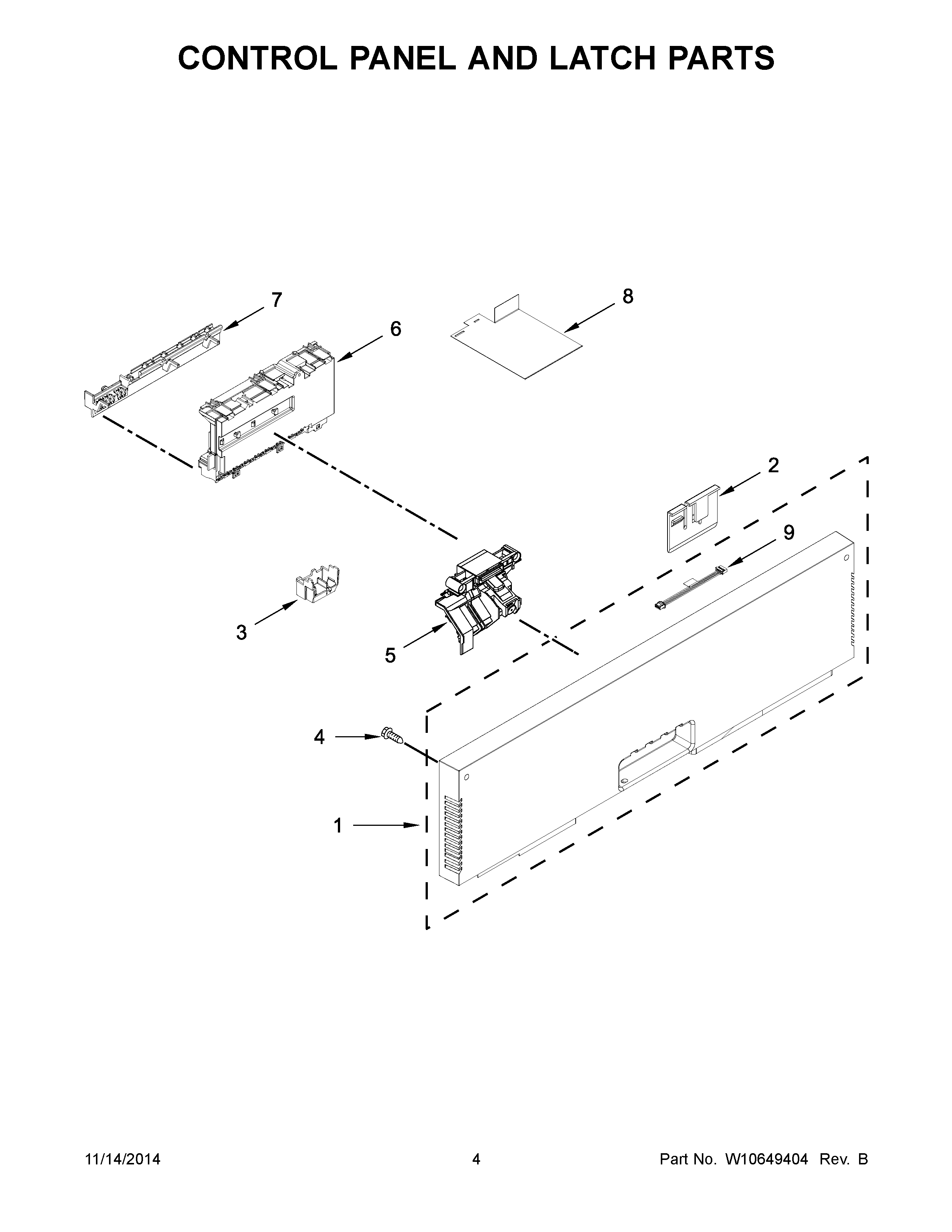

KDTE704DPA0 03 – CONTROL PANEL AND LATCH PARTS

KDTE704DPA0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTE704DPA0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10850350 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5WPW10653840 Whirlpool Door Latch
6W10866116 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8W10355484 Whirlpool Cover
9W10528492 Whirlpool Dishwasher Wire
