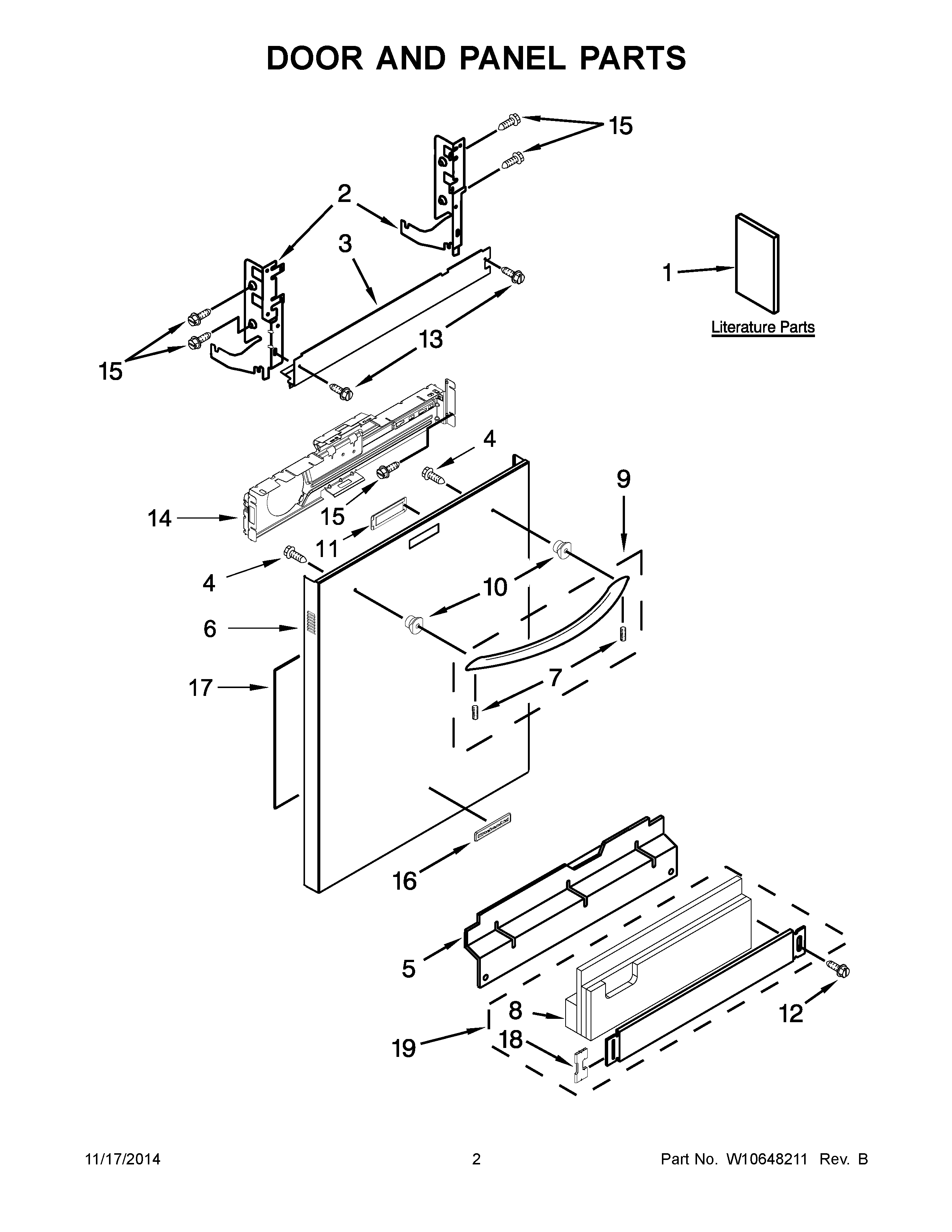

KDTE704DSS0 02 – DOOR AND PANEL PARTS

KDTE704DSS0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BUSE & CARE GUIDE
1INSTRUCTIONS, INSTALLATION
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1AENERGY GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
5AW10909066 Whirlpool Dishwasher Panel
6AW10373938 Whirlpool Dishwasher Panel
6BWPW10195869 Whirlpool Control Panel
6W10373937 Whirlpool Dishwasher Panel
7WPW10307614 Whirlpool Dishwasher Screw
8SHIELD
9AW10195736A Whirlpool Dishwasher Handle
9W10195735A Whirlpool Dishwasher Door Handle Black
9BW10195738A Whirlpool Stainless Steel Door Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10457051 Whirlpool Dishwasher Display Lens
12WP302868 Whirlpool Screw
12AWPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14WPW10350242 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243392 Whirlpool Dishwasher Nameplate
16BWPW10243391 Whirlpool Refrigerator Nameplate
16AWPW10243393 Whirlpool Dishwasher Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
18WP8269016 Whirlpool Clip Assembly
19AWPW10586591 Whirlpool Dishwasher Toe Panel
