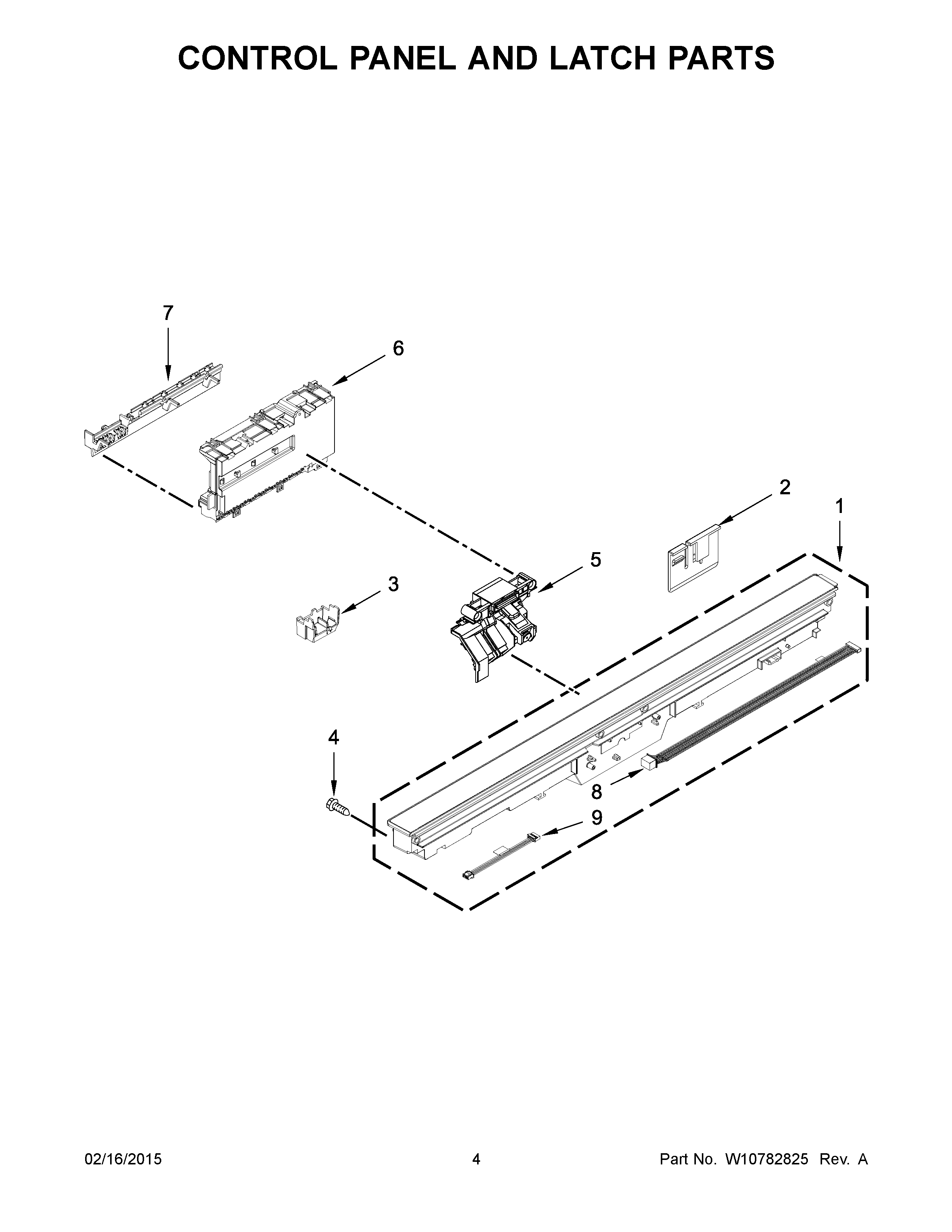

KDTE704DSS1 03 – CONTROL PANEL AND LATCH PARTS

KDTE704DSS1 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTE704DSS1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10866116 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8WPW10195204 Whirlpool Dishwasher Wire
9W10528492 Whirlpool Dishwasher Wire
