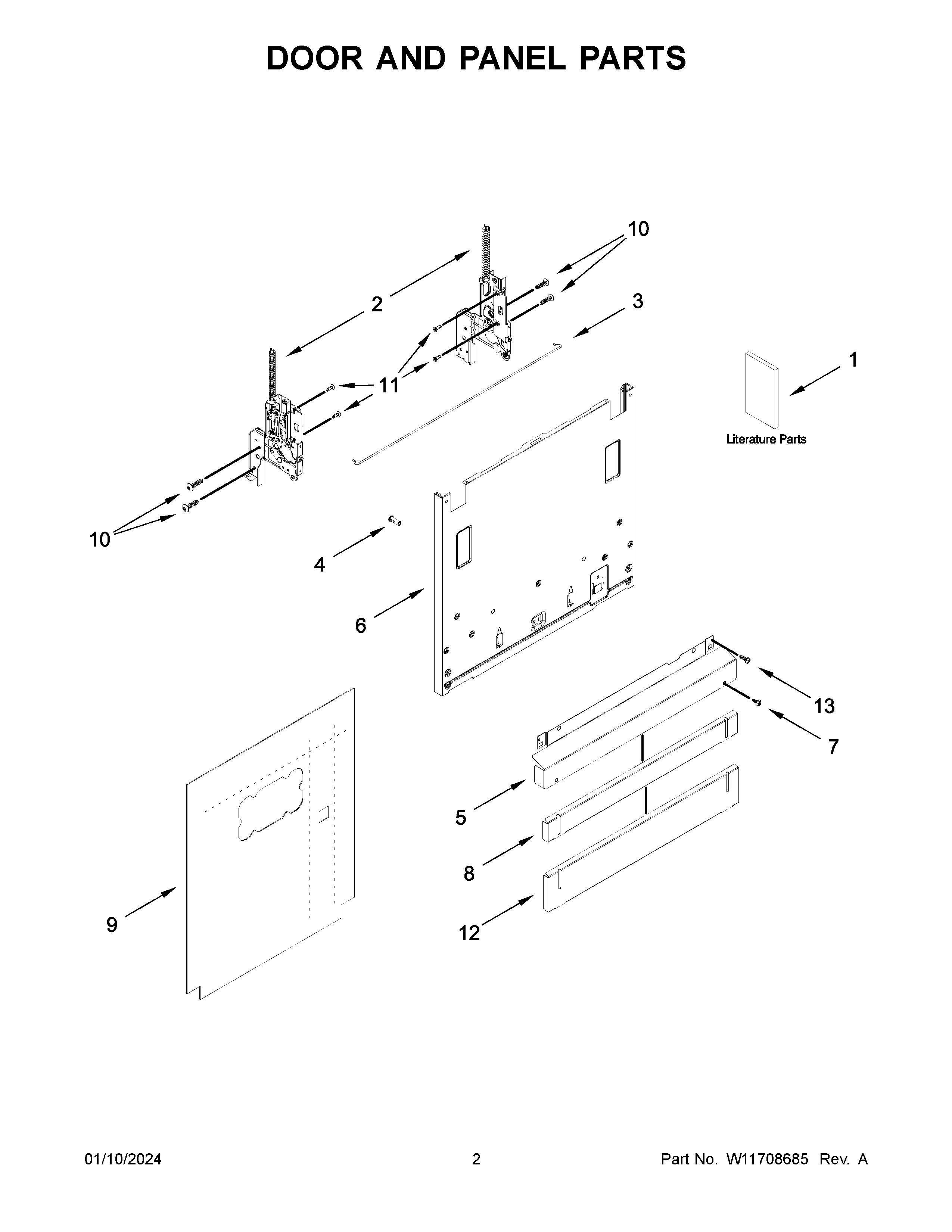

KDTF324PPA0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1B	TECH SHEET
1	OWNERS MANUAL
1A	ENERGY GUIDE
2	ARM, HINGE (LEFT HAND)
2A	ARM, HINGE (RIGHT HAND)
3	CROSS BRACE, DOOR
4	BUSHING, DOOR
5	PANEL, MAIN ACCESS (BLACK)
6	PANEL, OUTER DOOR (INCLUDES 4)
7	WP302868 Whirlpool Screw
8	PANEL, 2" ADJUSTABLE (BLACK)
9	INSULATION, INNER DOOR
10	SCREW
11	SCREW
12	PANEL, 4" ADJUSTABLE (BLACK)
13	SCREW
