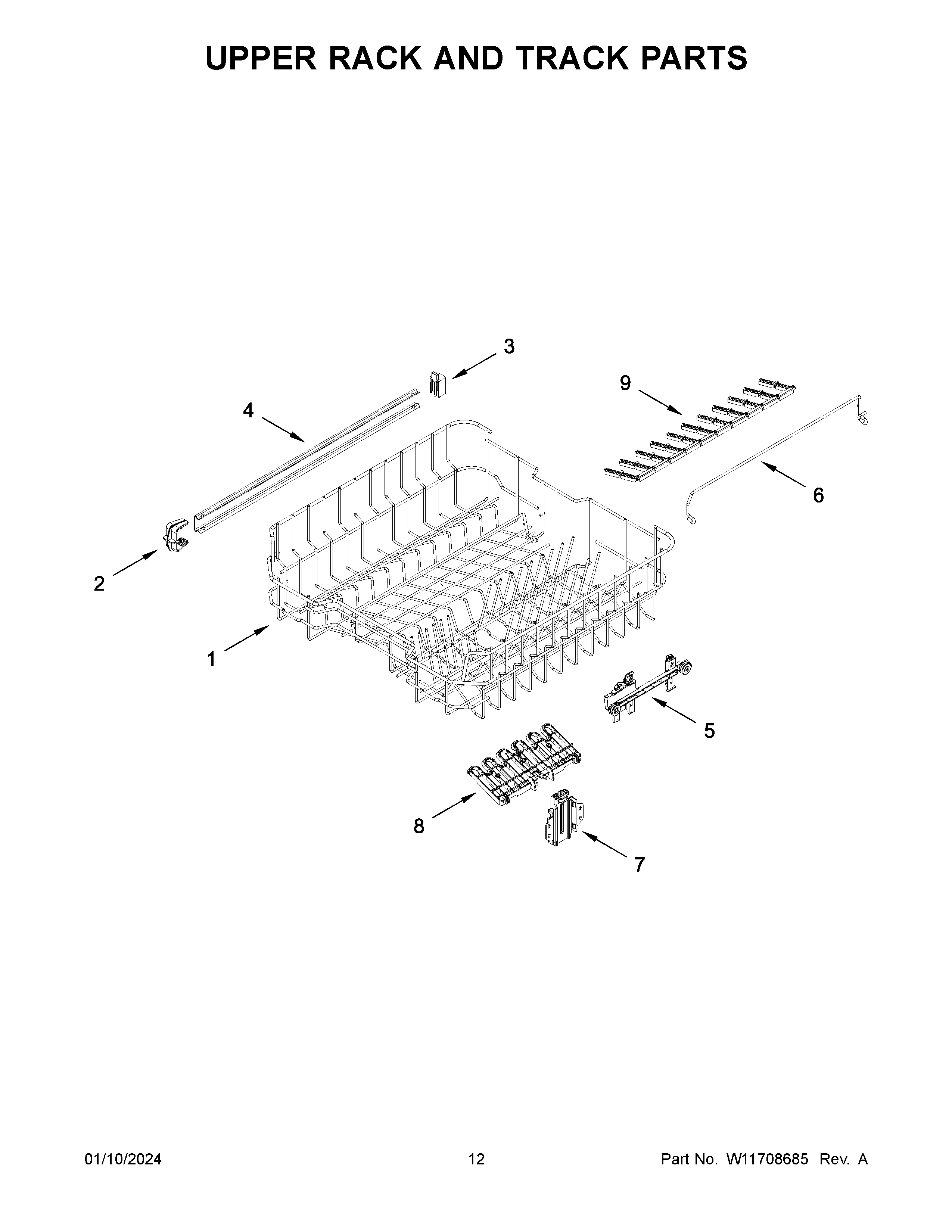

KDTF324PPA0 07 – UPPER RACK AND TRACK PARTS

KDTF324PPA0 07 – UPPER RACK AND TRACK PARTS

Written by

in

KDTF324PPA0 07 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	DISHRACK, UPPER
2	STOP
3	TRACK STOP, REAR
4	TRACK, DISHRACK
5	ADJUSTMENT ASSEMBLY (LEFT)
5A	ADJUSTMENT ASSEMBLY (RIGHT)
6	SUPPORT, TINE ROW
7	CLIP, CUP SHELF
8	CUP SHELF
9	TINE ROW, FOLD DOWN
