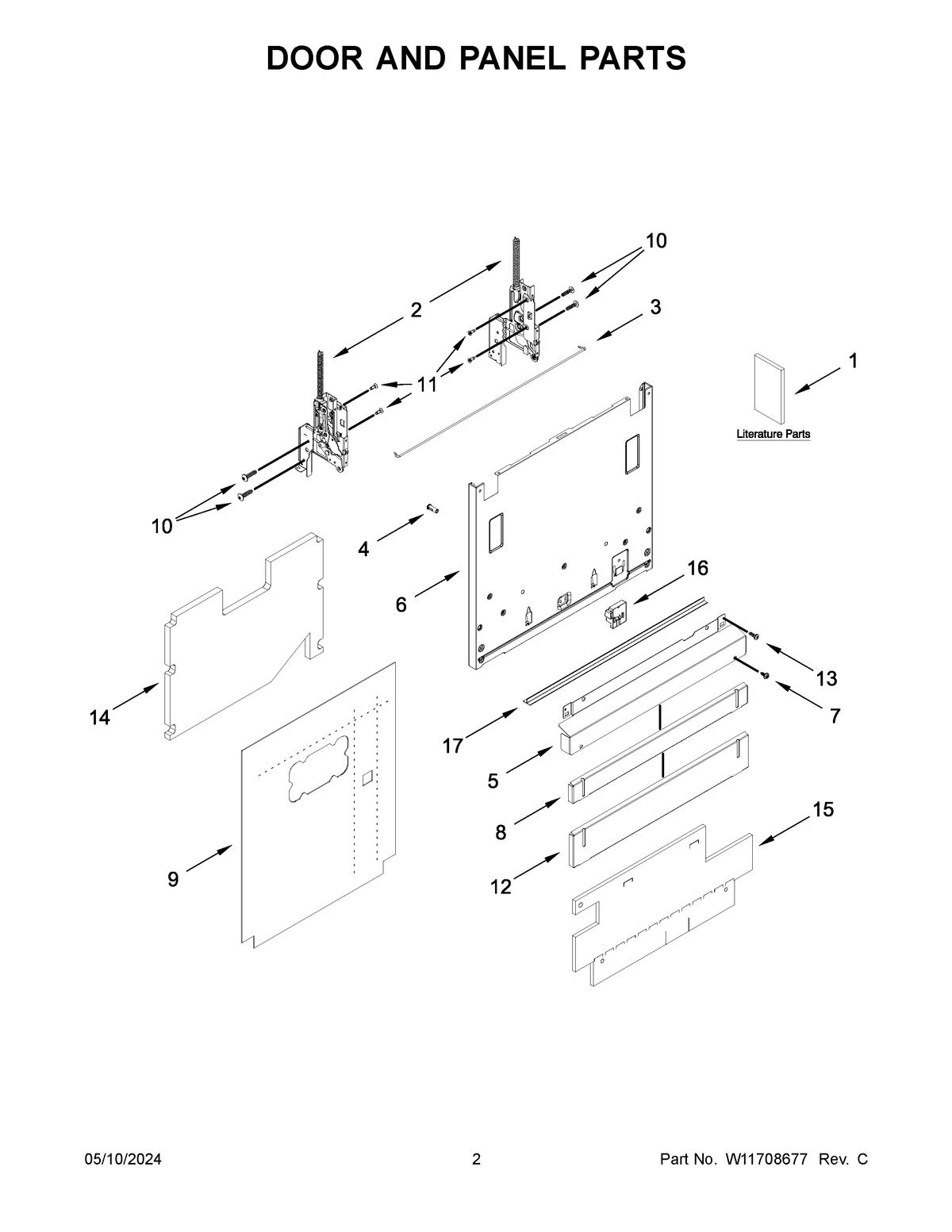

KDTF924PPA0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1OWNERS MANUAL
1AENERGY GUIDE
1BTECH SHEET
2AARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3CROSS BRACE, DOOR
4BUSHING, DOOR
5PANEL, MAIN ACCESS (BLACK)
6PANEL, OUTER DOOR (INCLUDES 4)
7WP302868 Whirlpool Screw
8PANEL, 2" ADJUSTABLE (BLACK)
9INSULATION, INNER DOOR
10SCREW
11SCREW
12PANEL, 4" ADJUSTABLE (BLACK)
13SCREW
14INSULATION, DOOR
15INSULATION, BOTTOM
16DISPLAY, FLOOR
17GASKET, BOTTOM DOOR
