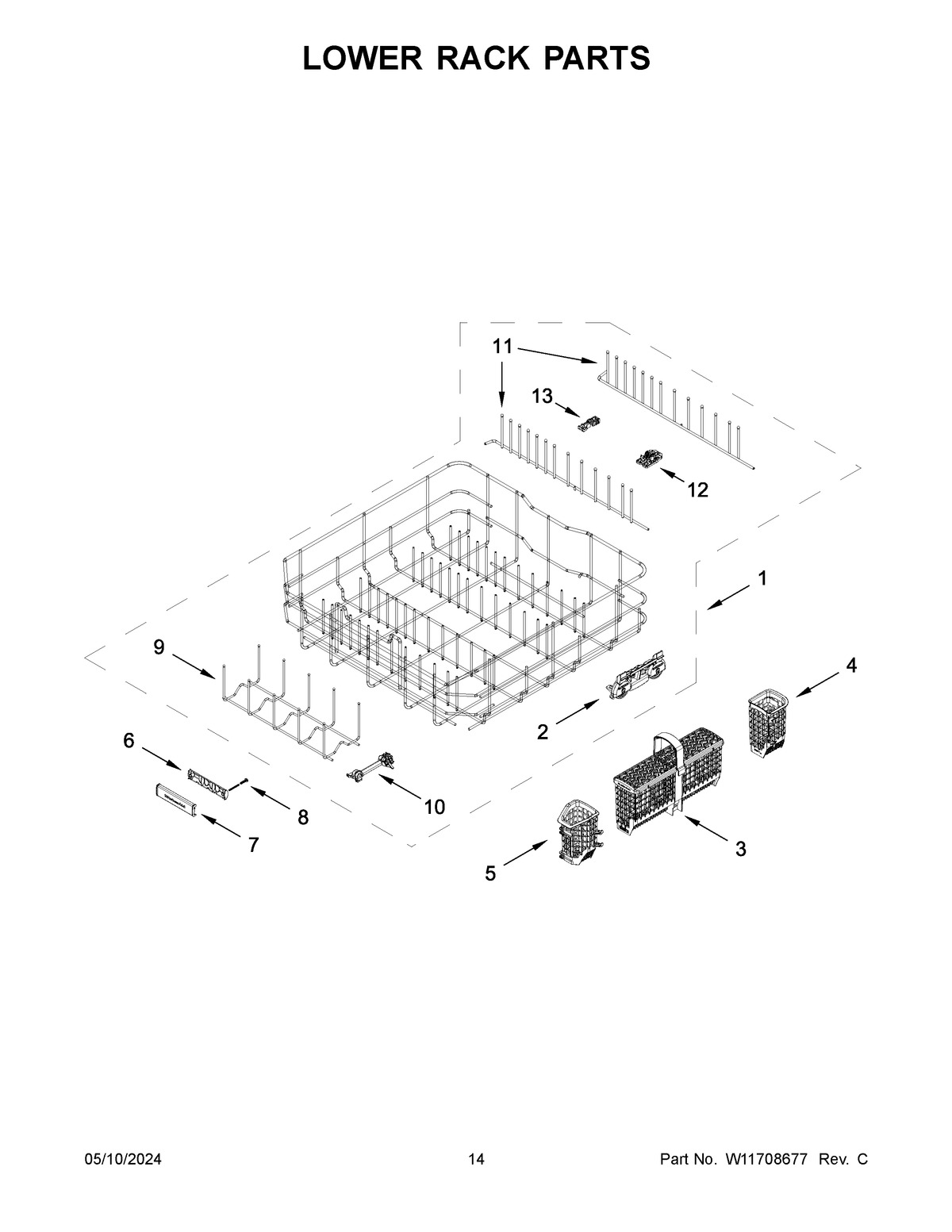

KDTF924PPA0 08 – LOWER RACK PARTS

Products

PositionProduct
1DISHRACK, LOWER
2WHEEL & TRANSPORT ASSEMBLY
3SILVERWARE BASKET ASSEMBLY
4UTENSIL BASKET (REAR)
5UTENSIL BASKET (FRONT)
6HANDLE, REAR
7HANDLE, FRONT
8SCREW
9SLIDING TINE, BOWL
10CLIP, SLIDING TINE
11TINE, FOLDDOWN (REAR)
11ATINE, FOLDDOWN (FRONT)
12CLIP, POSITIONING
13CLIP, RETAINER
