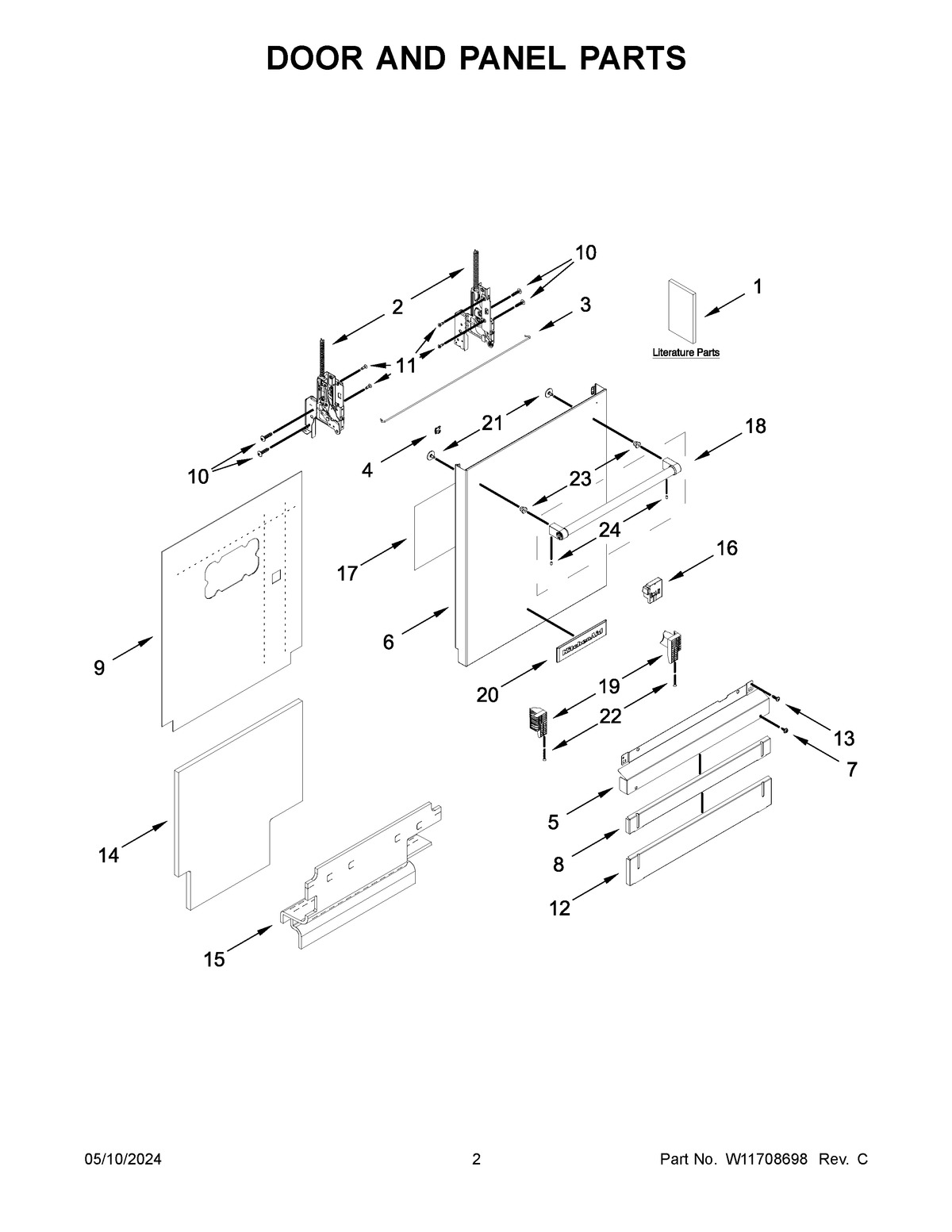

KDTF924PPS0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2AARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3CROSS BRACE, DOOR
4NUT, BARREL
5PANEL, MAIN ACCESS (BLACK)
6W11693809 Whirlpool Panel
7WP302868 Whirlpool Screw
8PANEL, 2" ADJUSTABLE (BLACK)
9INSULATION, INNER DOOR
10SCREW
11SCREW
12PANEL, 4" ADJUSTABLE (BLACK)
13SCREW
14INSULATION, DOOR
15INSULATION, LONG TUB LIP
16DISPLAY, FLOOR
17INSULATION, FRONT PANEL
18W10708004 Whirlpool Dishwasher Handle
19SUPPORT, DOOR (LEFT)
19ASUPPORT, DOOR (RIGHT)
20W10909682 Whirlpool Nameplate Tag
21W10826179 Whirlpool Dishwasher Screw
22SCREW
23W11157086 Whirlpool Dishwasher Door Handle Stud
24W10917698 Whirlpool Dishwasher Screw
