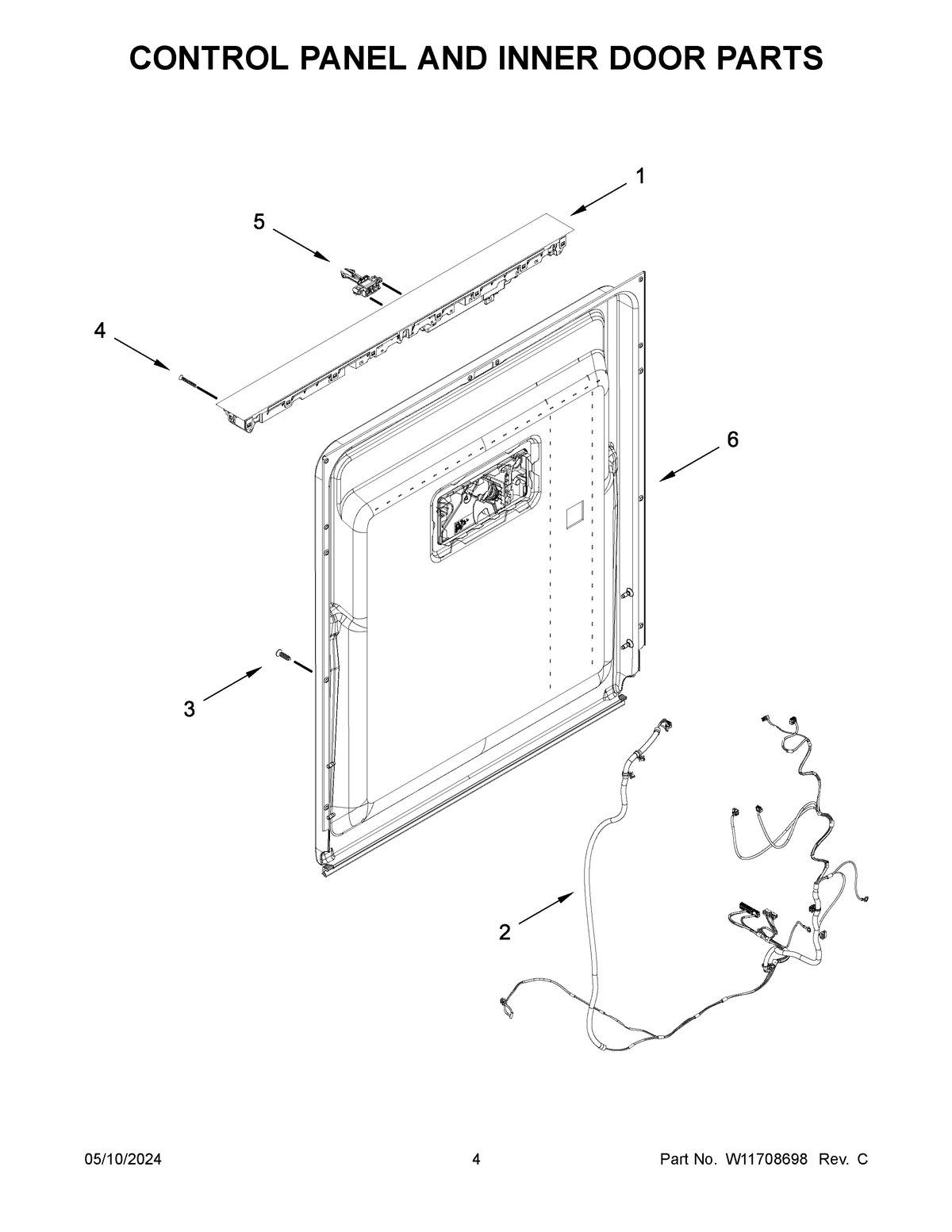

KDTF924PPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

KDTF924PPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

KDTF924PPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11693808-includeCORE Whirlpool W11693808 Console with Core
2WIRING HARNESS, INNER DOOR
3SCREW
4SCREW
5W11412299 Whirlpool Dishwasher Door Latch
6INNER DOOR ASSEMBLY (INCLUDES SOAP DISPENSER)
