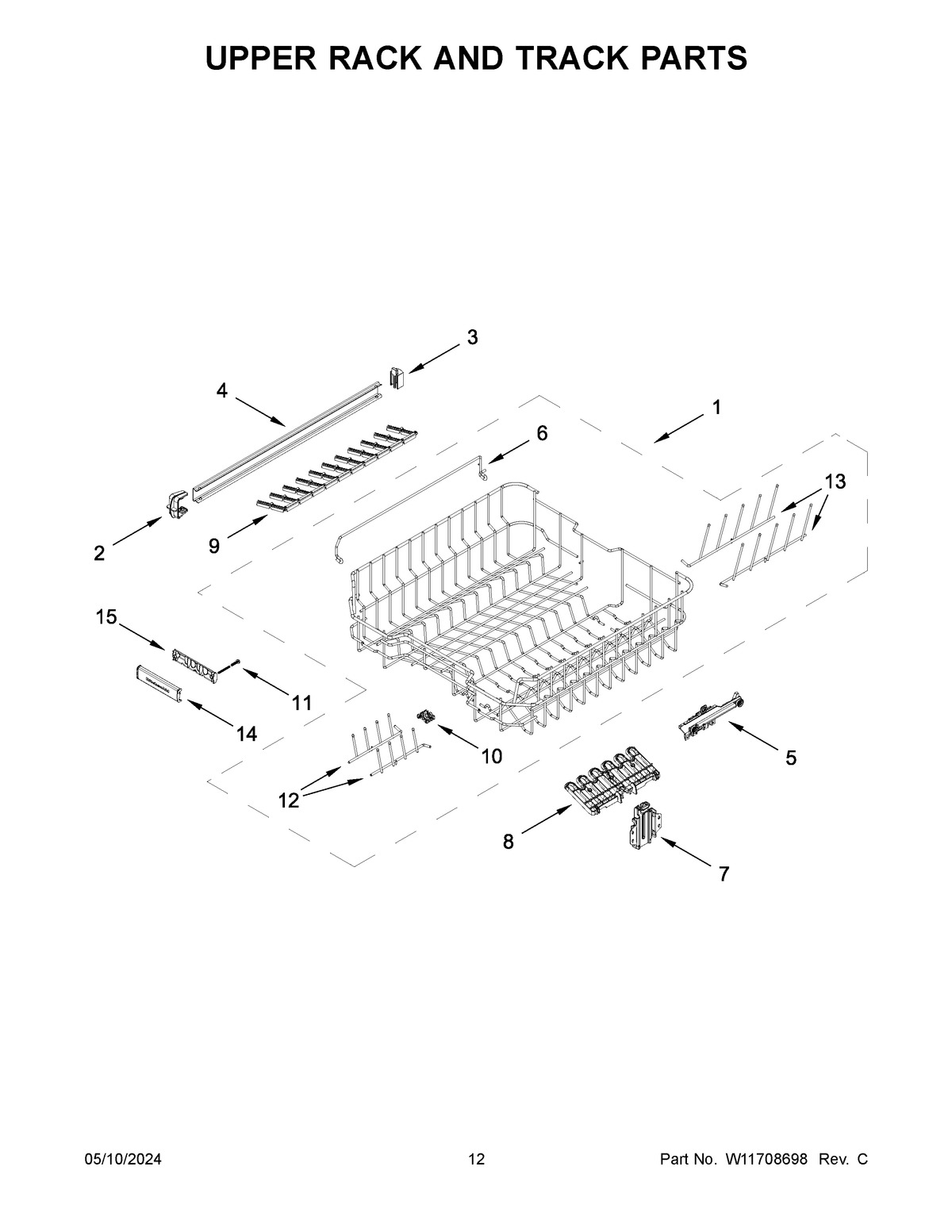

KDTF924PPS0 07 – UPPER RACK AND TRACK PARTS

KDTF924PPS0 07 – UPPER RACK AND TRACK PARTS

Written by

in

KDTF924PPS0 07 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	DISHRACK, UPPER
2	STOP
3	TRACK STOP, REAR
4	TRACK, DISHRACK
5	ADJUSTMENT ASSEMBLY (LEFT)
5A	ADJUSTMENT ASSEMBLY (RIGHT)
6	SUPPORT, TINE ROW
7	CLIP, CUP SHELF
8	CUP SHELF
9	TINE ROW, FOLD DOWN
10	CLIP, TINE ROW
11	SCREW
12	TINE ROW, FRONT (LEFT)
12A	TINE ROW, FRONT (RIGHT)
13	TINE ROW, BACK (LEFT)
13A	TINE ROW, BACK (RIGHT)
14	HANDLE, FRONT
15	HANDLE, REAR
