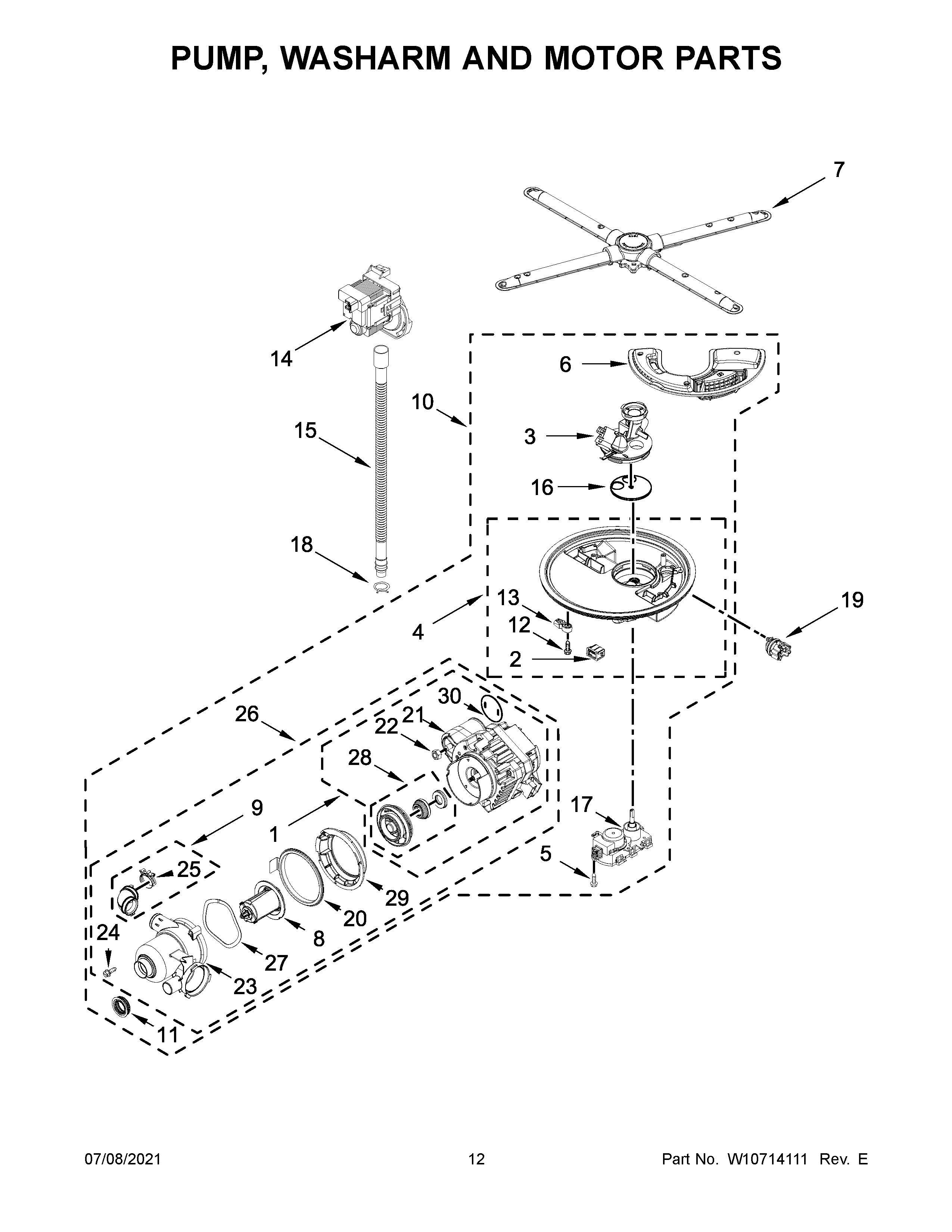

KDTM354DSS0 07 – PUMP, WASHARM AND MOTOR PARTS

KDTM354DSS0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

KDTM354DSS0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W10907617 Whirlpool Pump Assembly
2W10647236 Whirlpool Support
3WPW10455272 Whirlpool Dishwasher Cover
4SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5WP9741232 Whirlpool Dishwasher Screw
6W10832800 Whirlpool Sump Assembly
7W11553338 Whirlpool Spray Arm
8FILTR-PUMP
9W10730897 Whirlpool Hose Assembly
10PUMP&MOTOR
11W11177741 Whirlpool Dishwasher Door Gasket
12WPW10348407 Whirlpool Dishwasher Screw
13WPW10372113 Whirlpool Dishwasher Sump Tab
14WPW10348269 Whirlpool Washer Drain Pump
158269144A Whirlpool Dishwasher Drain Hose
16WPW10476221 Whirlpool Dishwasher Diffuser
17W10537869 Whirlpool Dishwasher Motor
18WP8269146 Whirlpool Dishwasher Clamp
19WPW10705575 Whirlpool Dishwasher Sensor
20W10380239 Whirlpool Ring
21W11662065 Whirlpool Dishwasher Capacitor
228533949 Whirlpool Dishwasher Nut
23W10708008 Whirlpool Pump Cover
24W10467002 Whirlpool Screw
25W10783615 Whirlpool Dishwasher Clamp
26W10902589 Whirlpool Dishwasher Pump & Motor Assembly
27W10608271 Whirlpool Spring
28W10783130 Whirlpool Impeller
29W10723279 Whirlpool Volute
30SHIELD, CAPACITOR
