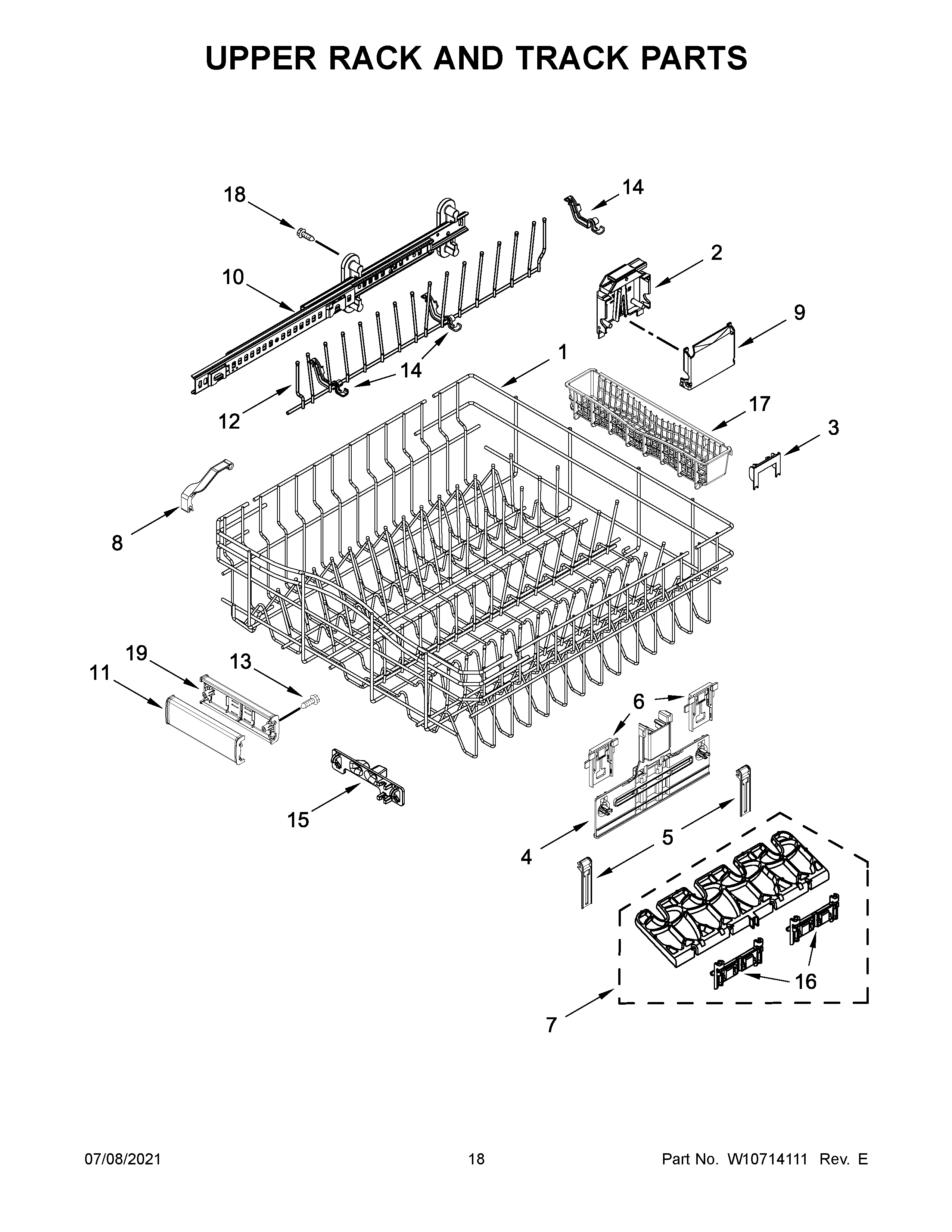

KDTM354DSS0 10 – UPPER RACK AND TRACK PARTS

KDTM354DSS0 10 – UPPER RACK AND TRACK PARTS

Written by

in

KDTM354DSS0 10 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10728863 Whirlpool Upper Dishrack Assembly
2AWPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8WPW10267076 Whirlpool Guard Clip
9COVER
10AW11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
10W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
12W10727426 Whirlpool Dishwasher Rack Tine
13WP9741232 Whirlpool Dishwasher Screw
14WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
15WP8539102 Whirlpool Dishwasher Positioner
16WPW10082848 Whirlpool Clip
17W11240750 Whirlpool Dishwasher Basket Ware
18WPW10309090 Whirlpool Dishwasher Screw
19W11110542 Whirlpool Dishwasher Handle
