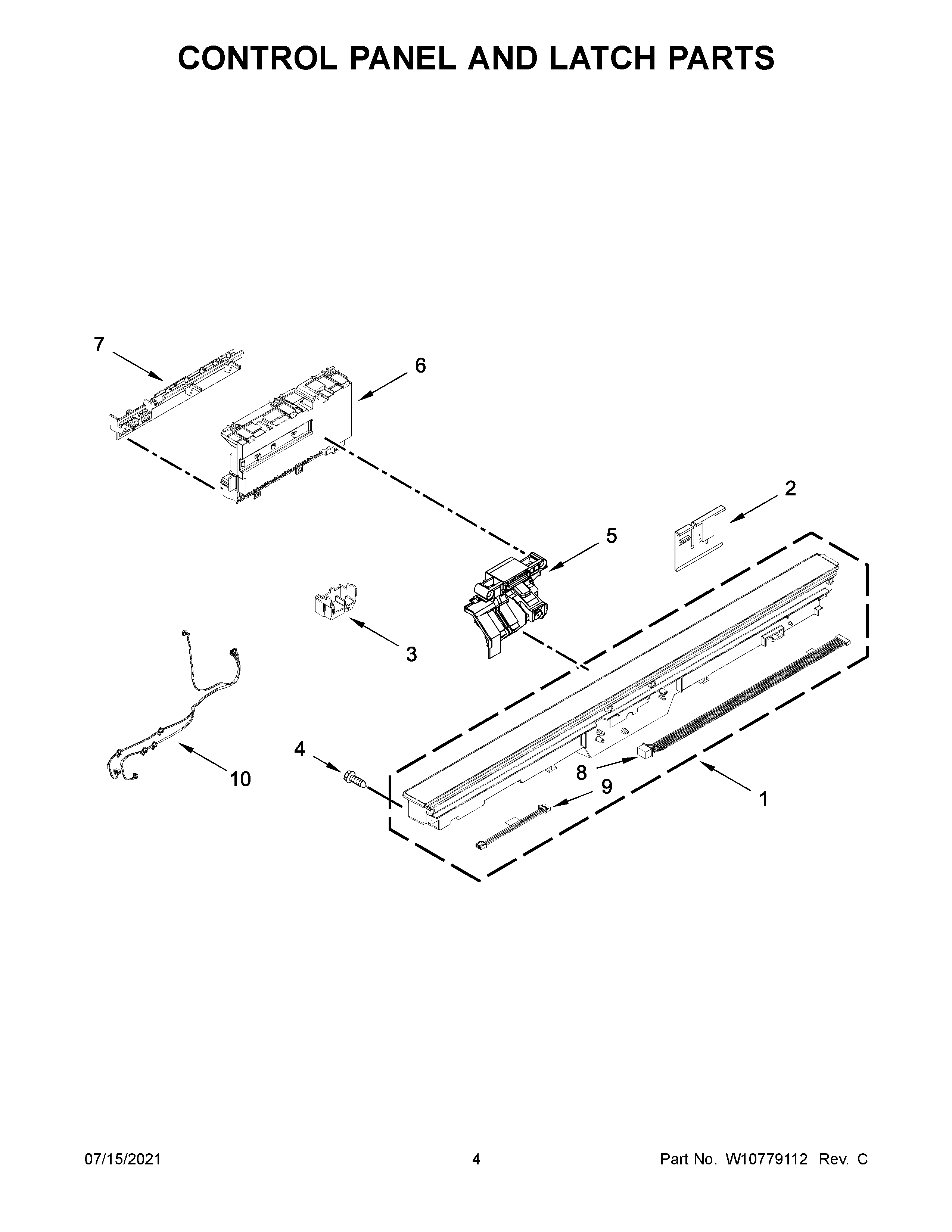

KDTM354DSS1 03 – CONTROL PANEL AND LATCH PARTS

KDTM354DSS1 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTM354DSS1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10803367 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10854216 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195204 Whirlpool Dishwasher Wire
9W10528492 Whirlpool Dishwasher Wire
10W10751781 Whirlpool Dishwasher Wire
