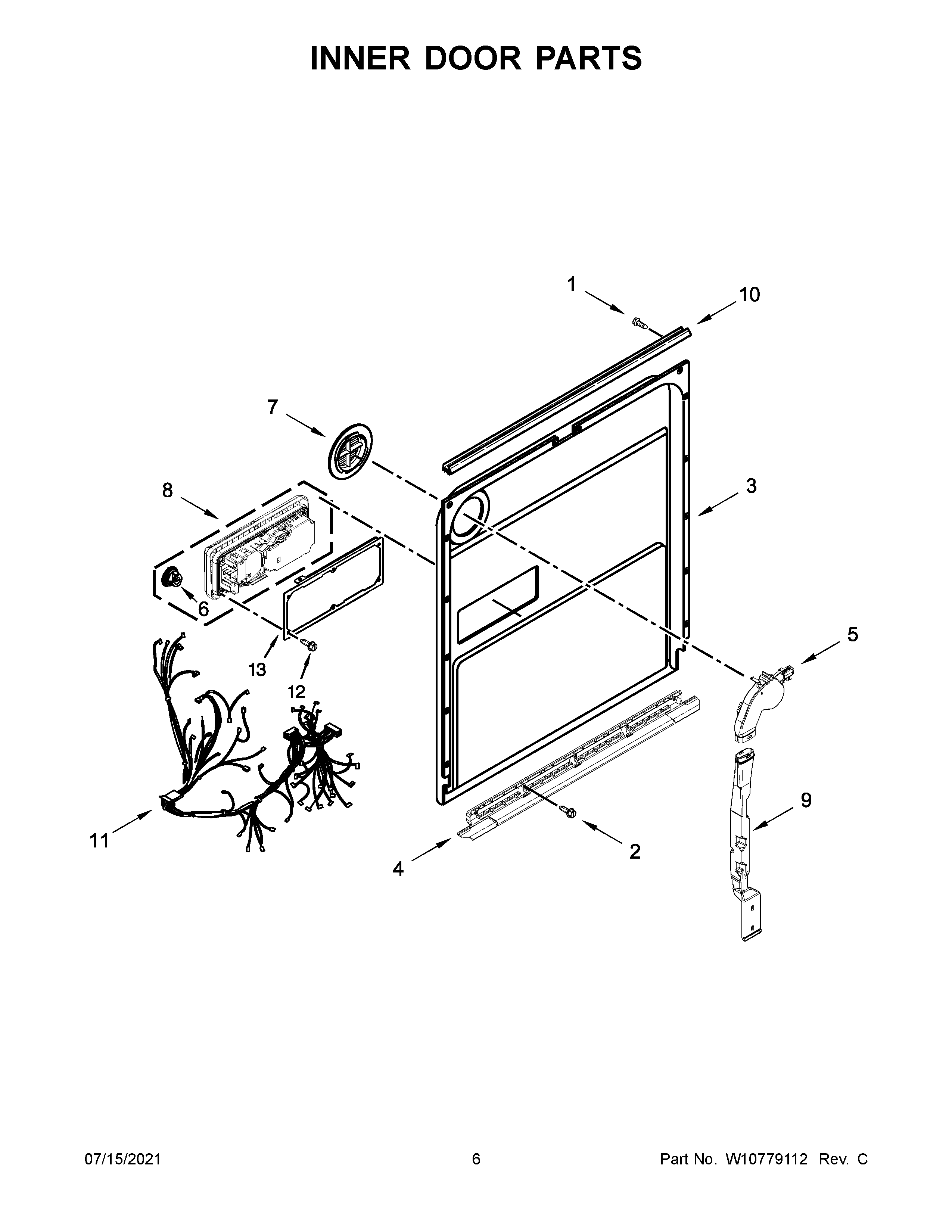

KDTM354DSS1 04 – INNER DOOR PARTS

KDTM354DSS1 04 – INNER DOOR PARTS

Written by

in

KDTM354DSS1 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10467367 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10469574 Whirlpool Dishwasher Vent
6WPW10524919 Whirlpool Dishwasher Dispenser Cap
7WPW10195028 Whirlpool Dishwasher Vent
8DISPENSER (DISHWASHER)
9WPW10195032 Whirlpool Dishwasher Deflector
10WPW10195007 Whirlpool Dishwasher Seal
11W10744898 Whirlpool Wire Harness
12WPW10177098 Whirlpool Dishwasher Screw
13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
