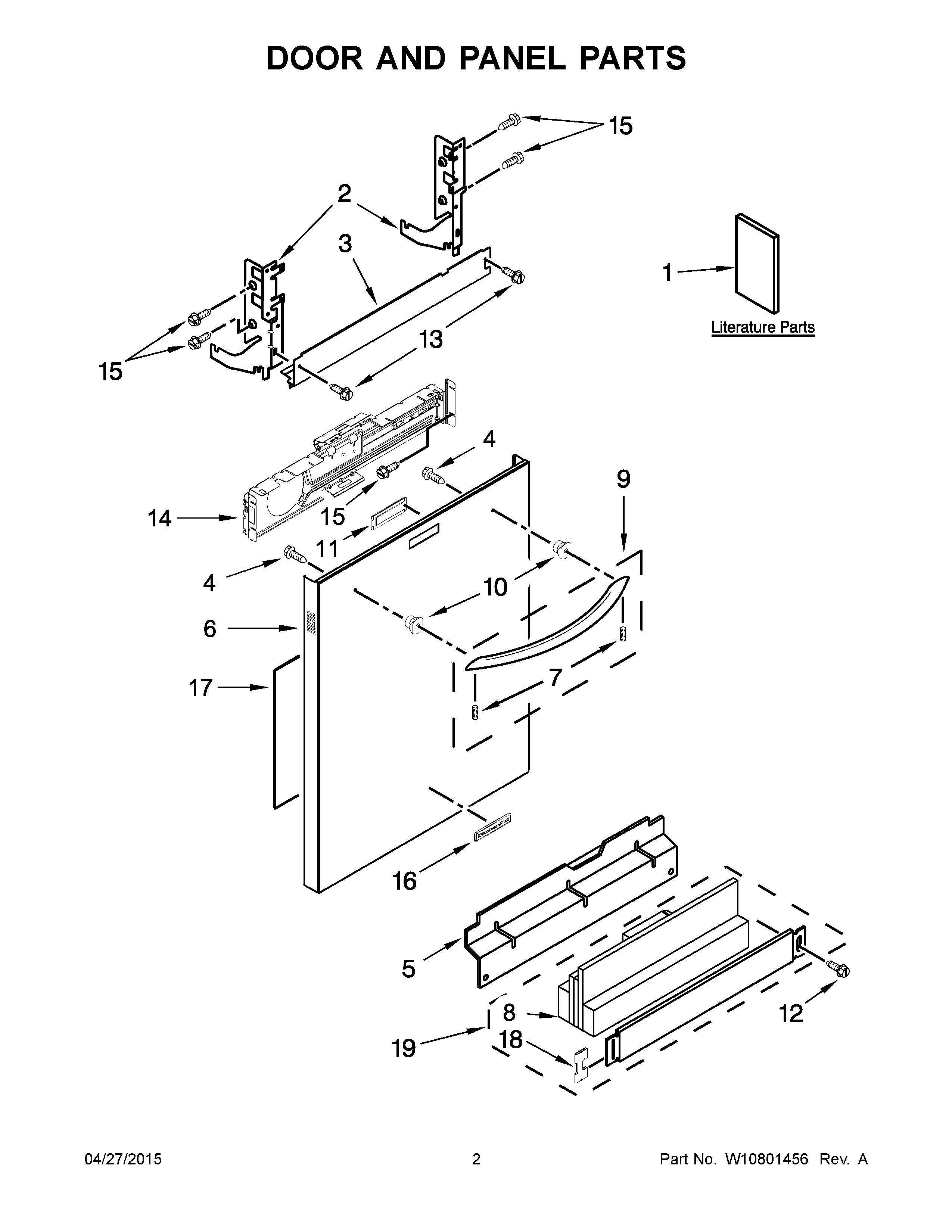

KDTM354DSS3 02 – DOOR AND PANEL PARTS

Products

Position	Product
1A	ENERGY GUIDE
1C	TECH SHEET
1B	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10826179 Whirlpool Dishwasher Screw
6	WPW10195869 Whirlpool Control Panel
7	WPW10307614 Whirlpool Dishwasher Screw
8	SHIELD
9	W11177713 Whirlpool Dishwasher Handle
10	W11157086 Whirlpool Dishwasher Door Handle Stud
11	W10457051 Whirlpool Dishwasher Display Lens
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	WPW10350242 Whirlpool Dishwasher Control Bracket
15	WP3400071 Whirlpool Screw
16	WPW10243391 Whirlpool Refrigerator Nameplate
17	W11126003 Whirlpool Dishwasher Insulation Pad
18	WP8269016 Whirlpool Clip Assembly
19	W10909064 Whirlpool Dishwasher Black Access Panel
20	W10910629 Whirlpool Dishwasher Nut
