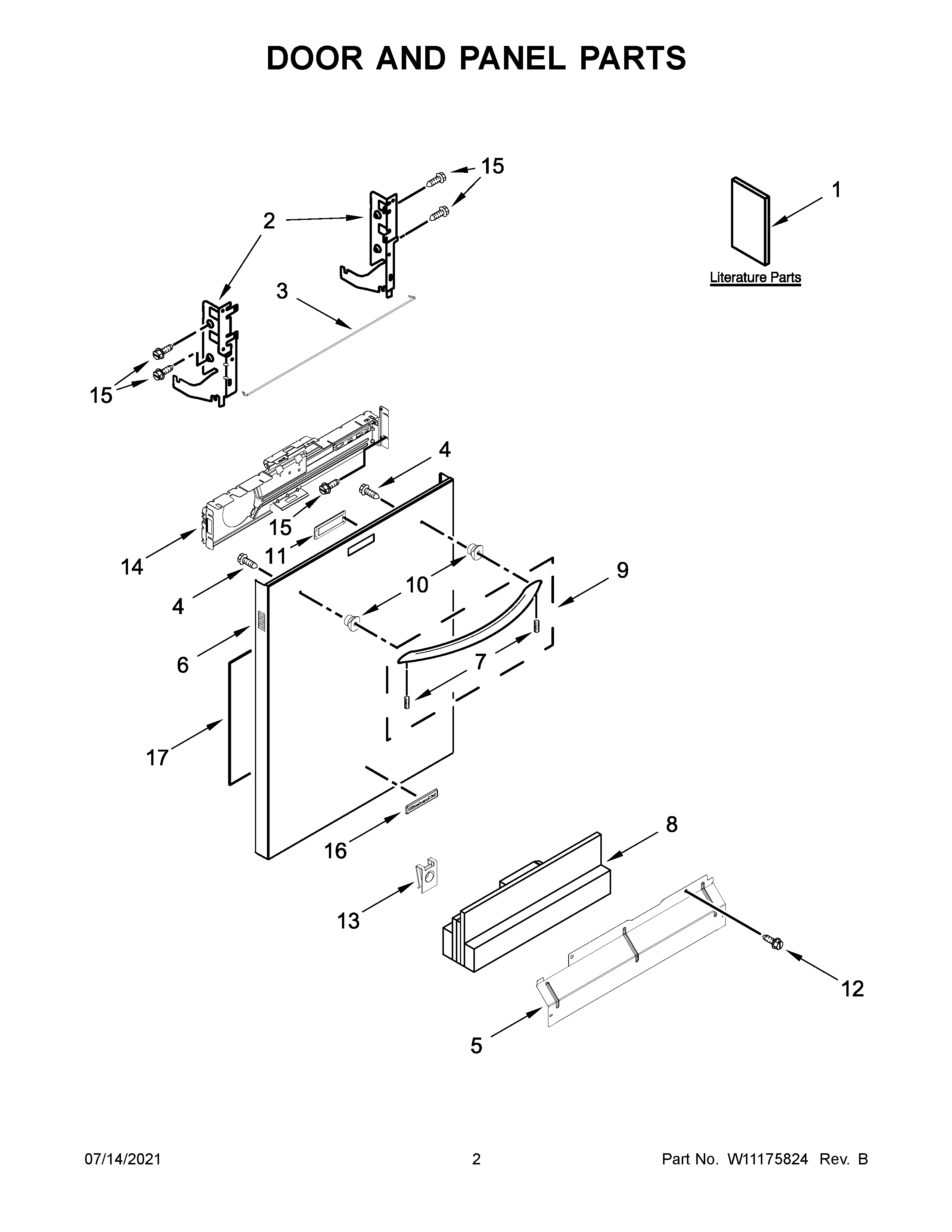

KDTM354DSS5 02 – DOOR AND PANEL PARTS

KDTM354DSS5 02 – DOOR AND PANEL PARTS

Written by

in

KDTM354DSS5 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1CTECH SHEET
1BUSE & CARE GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10195869 Whirlpool Control Panel
7WPW10307614 Whirlpool Dishwasher Screw
8SHIELD
9W11177713 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10457051 Whirlpool Dishwasher Display Lens
12WP302868 Whirlpool Screw
13W10910629 Whirlpool Dishwasher Nut
14WPW10350242 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
