KDTM354DSS5 07 – PUMP, WASHARM AND MOTOR PARTS

KDTM354DSS5 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

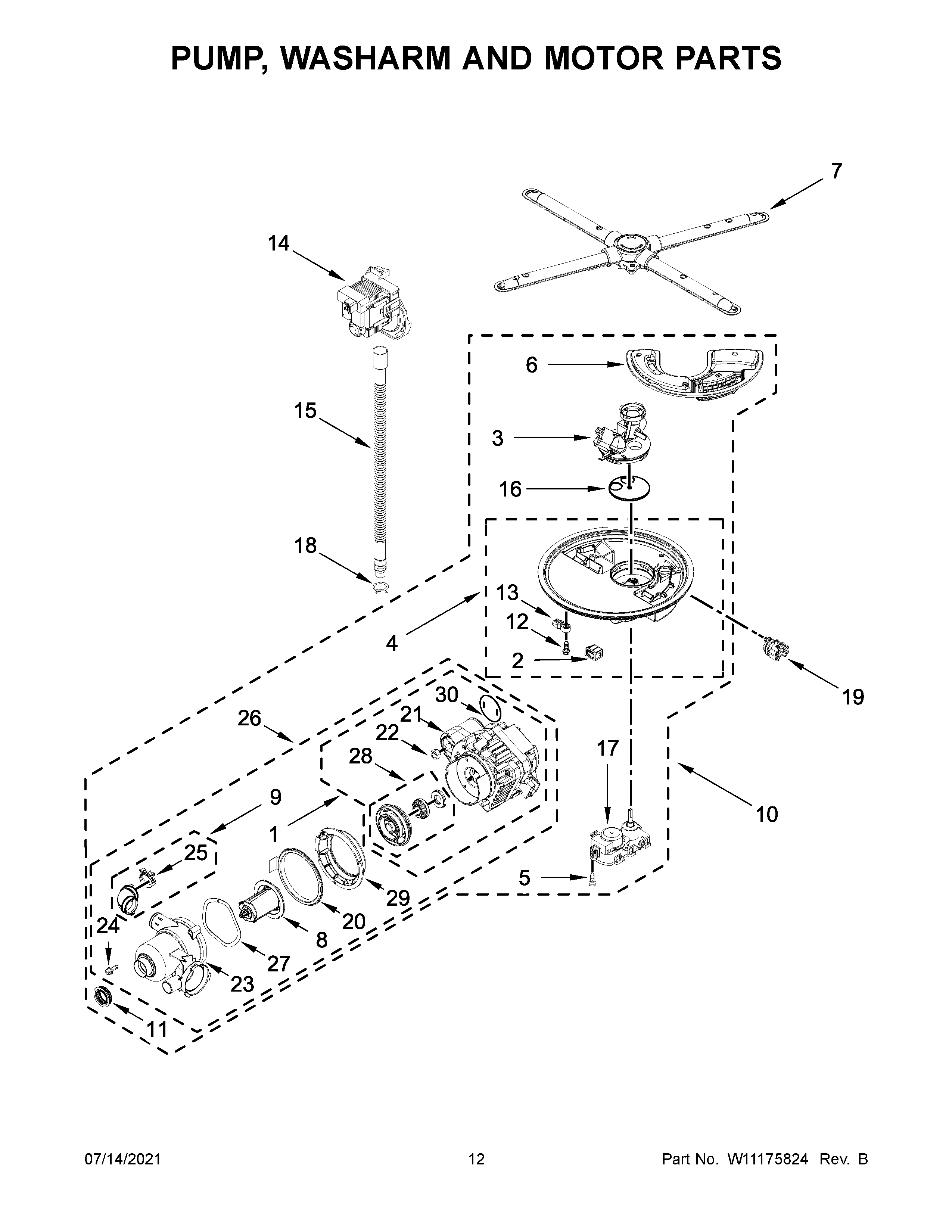

KDTM354DSS5 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W10907617 Whirlpool Pump Assembly
2W10647236 Whirlpool Support
3WPW10455272 Whirlpool Dishwasher Cover
4W10832796 Whirlpool Sump
5WP9741232 Whirlpool Dishwasher Screw
6W10832799 Whirlpool Screen
7W11553338 Whirlpool Spray Arm
8FILTR-PUMP
9W10730897 Whirlpool Hose Assembly
10PUMP&MOTOR
11WPW10538166 Whirlpool Grommet Pump
12WPW10348407 Whirlpool Dishwasher Screw
13WPW10372113 Whirlpool Dishwasher Sump Tab
14PUMP-DRAIN
158269144A Whirlpool Dishwasher Drain Hose
16WPW10476221 Whirlpool Dishwasher Diffuser
17W10537869 Whirlpool Dishwasher Motor
18WP8269146 Whirlpool Dishwasher Clamp
19W11084121 Whirlpool Sensor Turbidity
20W10380239 Whirlpool Ring
21W11662065 Whirlpool Dishwasher Capacitor
228533949 Whirlpool Dishwasher Nut
23W10708008 Whirlpool Pump Cover
24W10467002 Whirlpool Screw
25W10783615 Whirlpool Dishwasher Clamp
26W10902589 Whirlpool Dishwasher Pump & Motor Assembly
27W10772270 Whirlpool Spring Assembly
28W10783130 Whirlpool Impeller
29W10723279 Whirlpool Volute
30SHIELD, CAPACITOR
