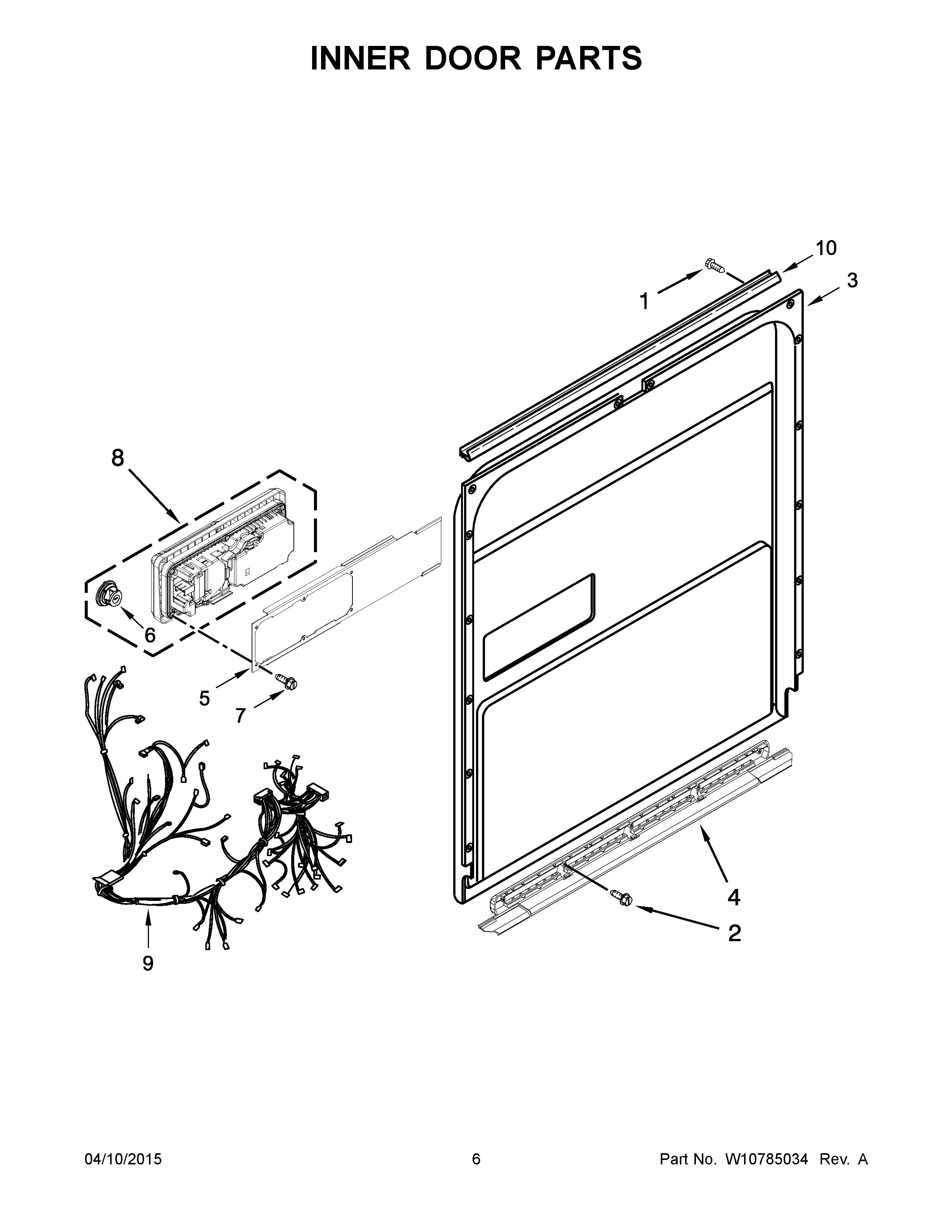

KDTM354ESS0 04 – INNER DOOR PARTS

KDTM354ESS0 04 – INNER DOOR PARTS

Written by

in

KDTM354ESS0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480716 Whirlpool Dishwasher Inner Door Assembly
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
6WPW10524919 Whirlpool Dishwasher Dispenser Cap
7WPW10177098 Whirlpool Dishwasher Screw
8DISPENSER (DISHWASHER)
9W10868117 Whirlpool Wire Harness
10W11213719 Whirlpool Dishwasher Seal
