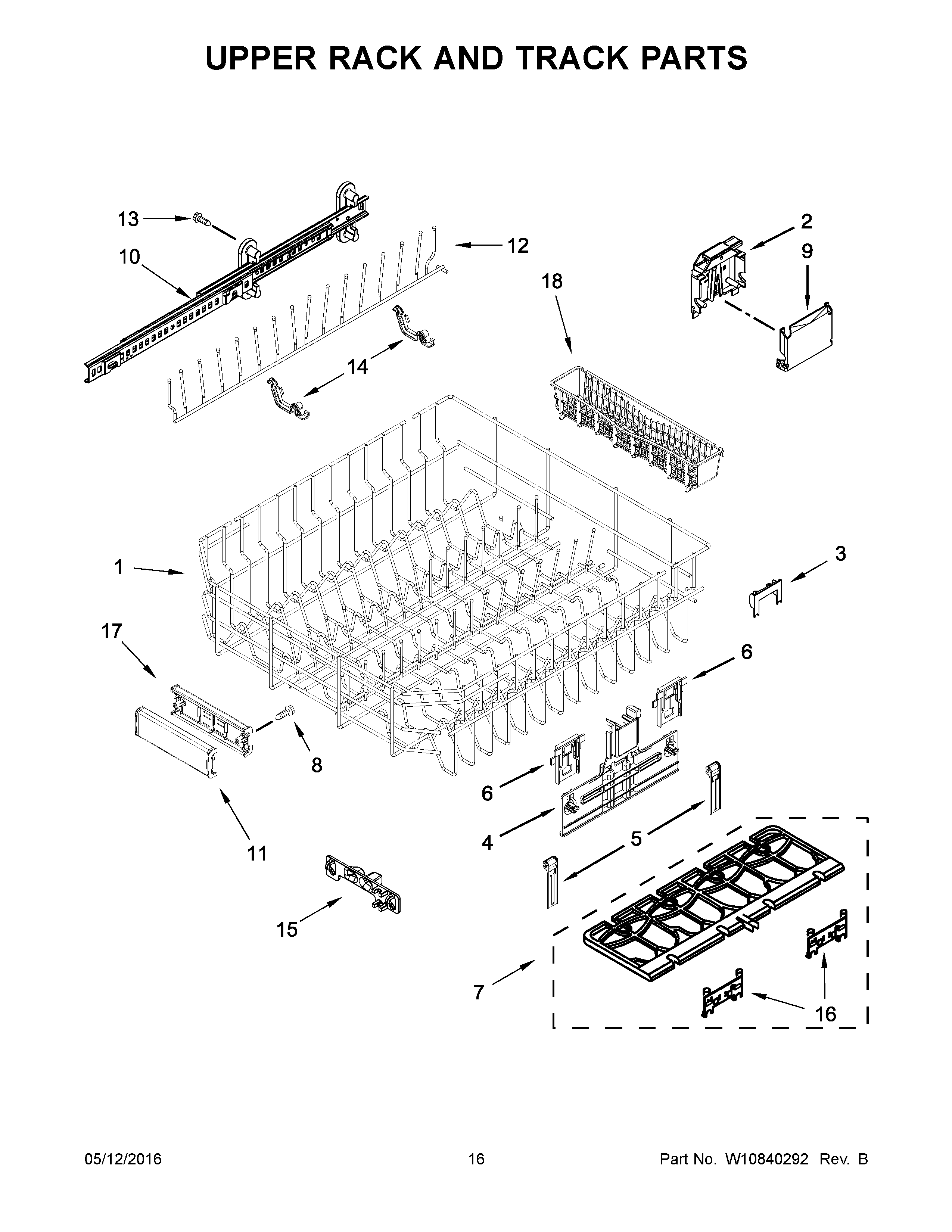

KDTM384EBS0 09 – UPPER RACK AND TRACK PARTS

KDTM384EBS0 09 – UPPER RACK AND TRACK PARTS

Written by

in

KDTM384EBS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, UPPER
2AWPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8WP9741232 Whirlpool Dishwasher Screw
9COVER
10AW11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
10W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
12TINE ROW, FOLD DOWN
13WPW10309090 Whirlpool Dishwasher Screw
14WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
15WP8539102 Whirlpool Dishwasher Positioner
16WPW10082848 Whirlpool Clip
17W11110542 Whirlpool Dishwasher Handle
18W11240750 Whirlpool Dishwasher Basket Ware
