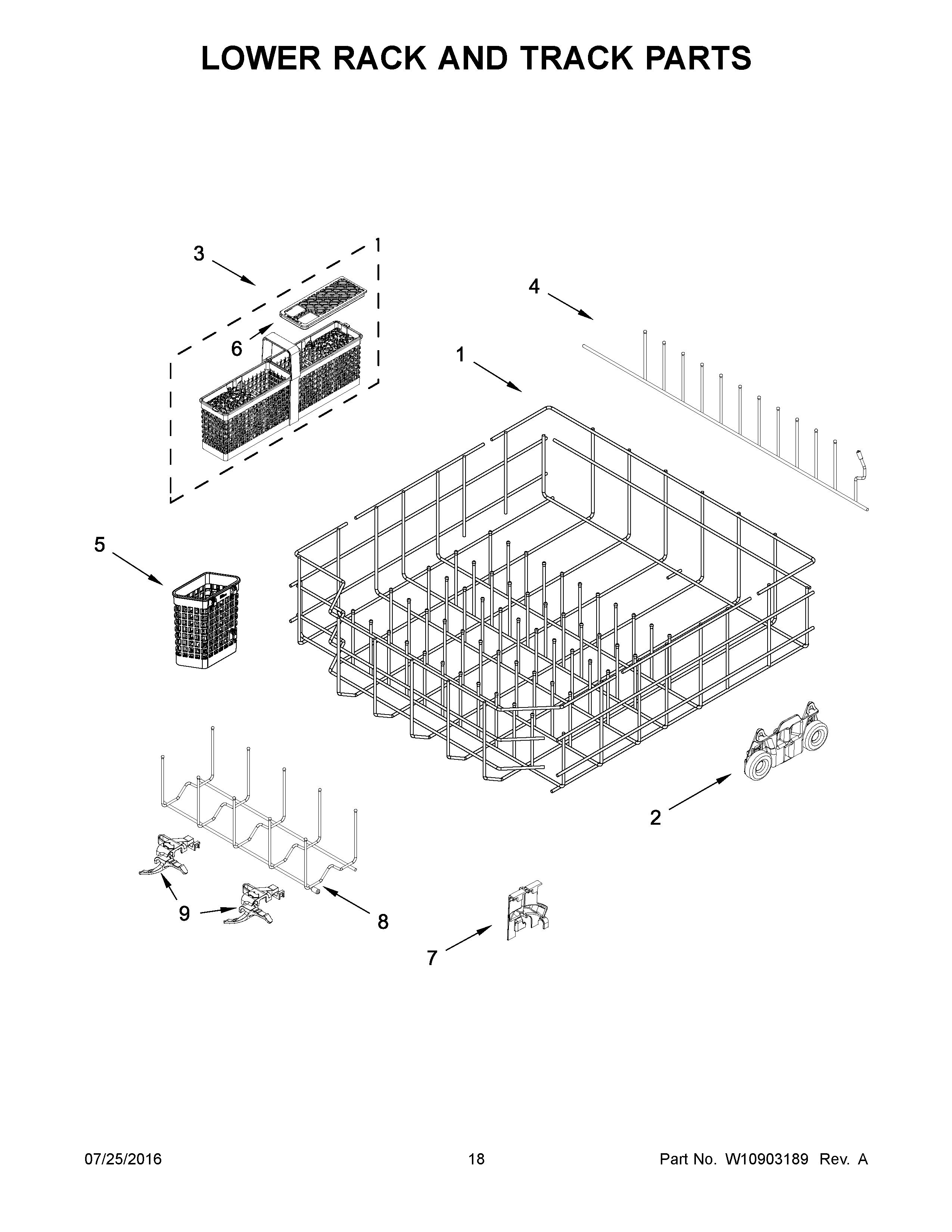

KDTM384EBS1 10 – LOWER RACK AND TRACK PARTS

KDTM384EBS1 10 – LOWER RACK AND TRACK PARTS

Written by

in

KDTM384EBS1 10 – LOWER RACK AND TRACK PARTS

Products

PositionProduct
1W11498446 Whirlpool Dishrack
2WPW10195417 Whirlpool Dishwasher Rack Roller Wheel
3WPW10473836 Whirlpool Silverware Basket
4W10728160 Whirlpool Tine Assembly
5WPW10482109 Whirlpool Dishwasher Basket Ware
6WPW10473835 Whirlpool Dishwasher Lid
7WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
8W10554952 Whirlpool Dishwasher Tine Row
9W11213333 Whirlpool Dishwasher Retainer
