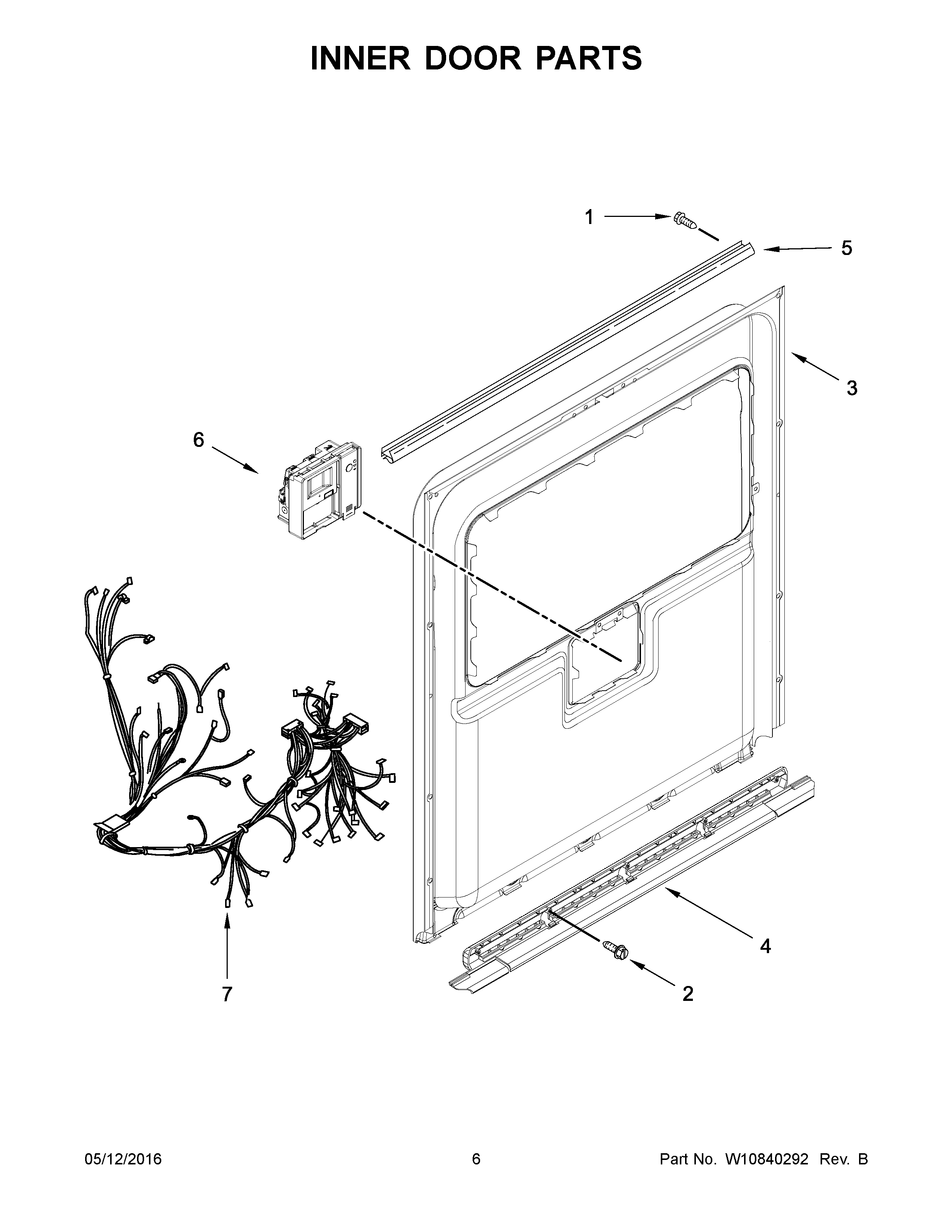

KDTM384ESS0 04 – INNER DOOR PARTS

KDTM384ESS0 04 – INNER DOOR PARTS

Written by

in

KDTM384ESS0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3W10735280 Whirlpool Inner Door
4W10909089 Whirlpool Seal
5W11213719 Whirlpool Dishwasher Seal
6W10861000 Whirlpool Dishwasher Detergent Dispenser
7W10772010 Whirlpool Wire Harness
7AW10566917 Whirlpool Wire Harness
7BW10808286 Whirlpool Wire Assembly
