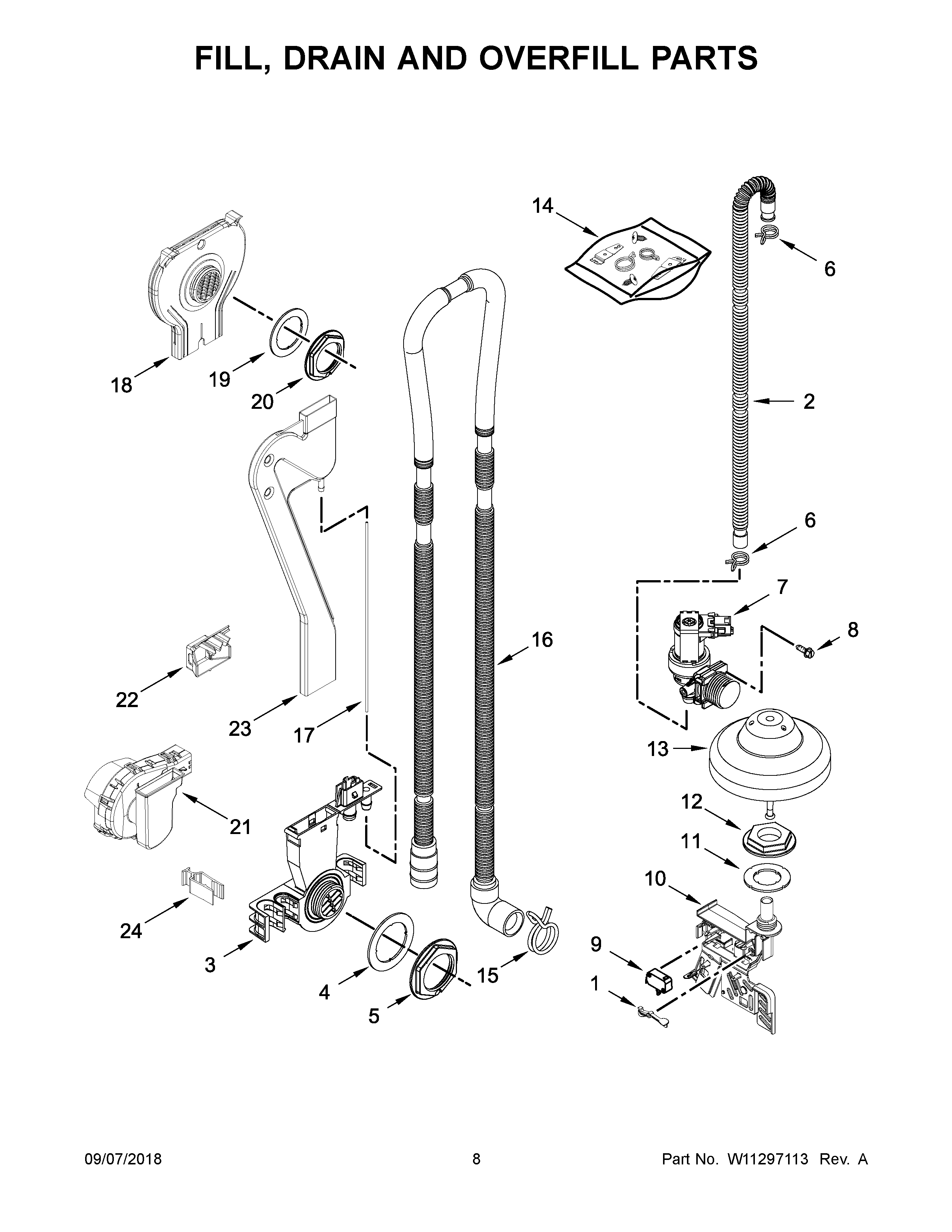

KDTM384ESS3 05 – FILL, DRAIN AND OVERFILL PARTS

Products

Position	Product
1	WPW10195037 Whirlpool Lever Assembly
2	W10878507 Whirlpool Inlet Hose
3	W11676544 Whirlpool Water Inlet
4	WP8531323 Whirlpool Gasket Seal
5	WPW10213825 Whirlpool Dishwasher Tube Nut
6	WP596669 Whirlpool Hose Clamp
7	W10648041 Whirlpool Water Inlet Valve
8	WP3390631 Whirlpool Screw
9	WPW10195039 Whirlpool Dishwasher Float Switch
10	W10873429 Whirlpool Housing
11	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12	WPW10195038 Whirlpool Dishwasher Nut
13	WPW10195036 Whirlpool Dishwasher Float
14	WPW10292152 Whirlpool Hardware Kit
15	WP285655 Whirlpool Hose Clamp
16	W11084165 Whirlpool Drain Hose
17	W10772907 Whirlpool Vent Tube
18	W10871832 Whirlpool Vent Assembly
19	W10653310 Whirlpool Gasket
21	W11228135 Whirlpool Vent
22	W10653323 Whirlpool Air Inlet Assembly
23	W11288079 Whirlpool Vent Tube
24	W10653320 Whirlpool Retainer
