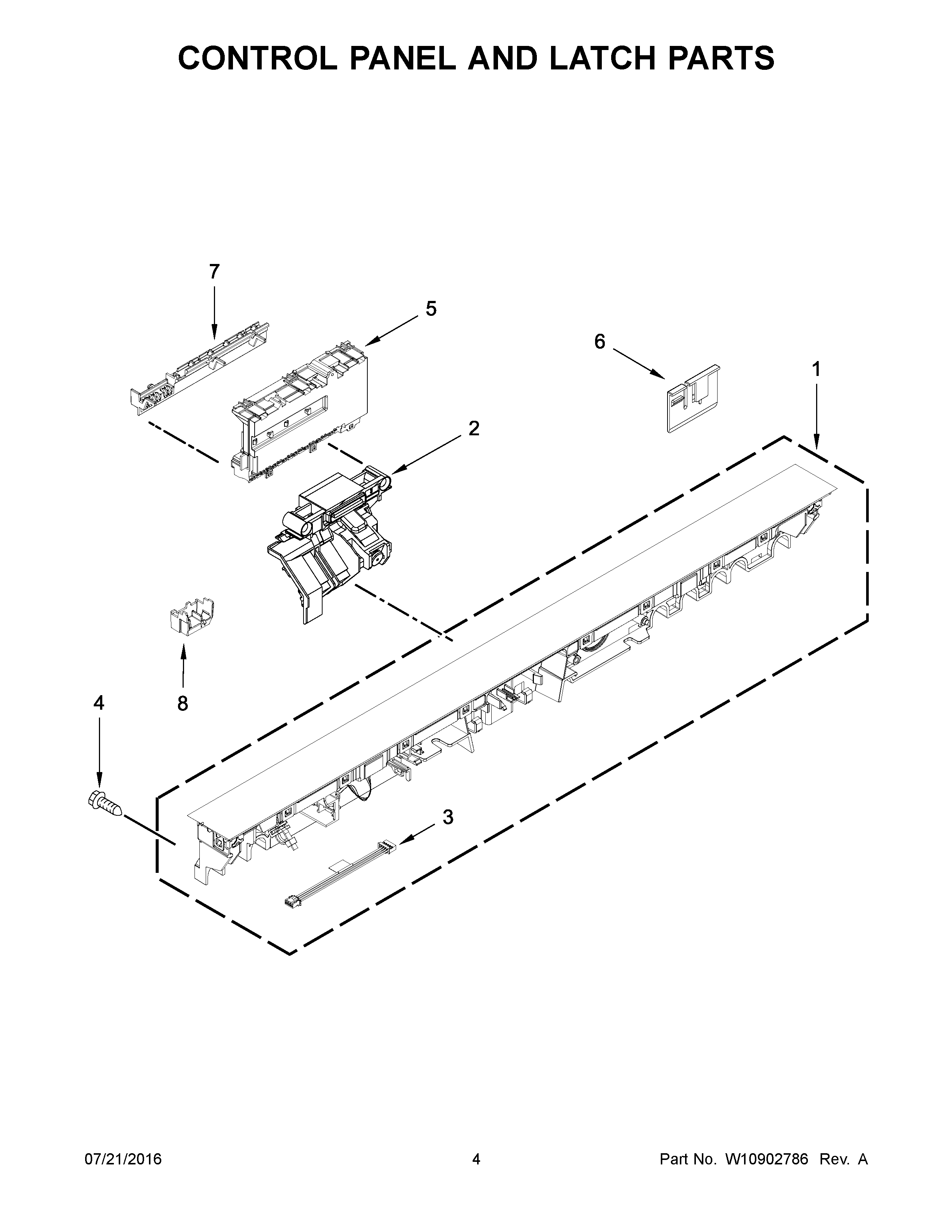

KDTM404EBS2 03 – CONTROL PANEL AND LATCH PARTS

KDTM404EBS2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTM404EBS2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1AW10903799 Whirlpool Control Panel
1W10903798 Whirlpool Control Panel
2WPW10653840 Whirlpool Door Latch
3W10566919 Whirlpool Dishwasher Wire
4WPW10348408 Whirlpool Dishwasher Screw
5W10854228 Whirlpool Dishwasher Electronic Control Board
6W11256107 Whirlpool Dishwasher Clip
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10783730 Whirlpool Dishwasher Connector
