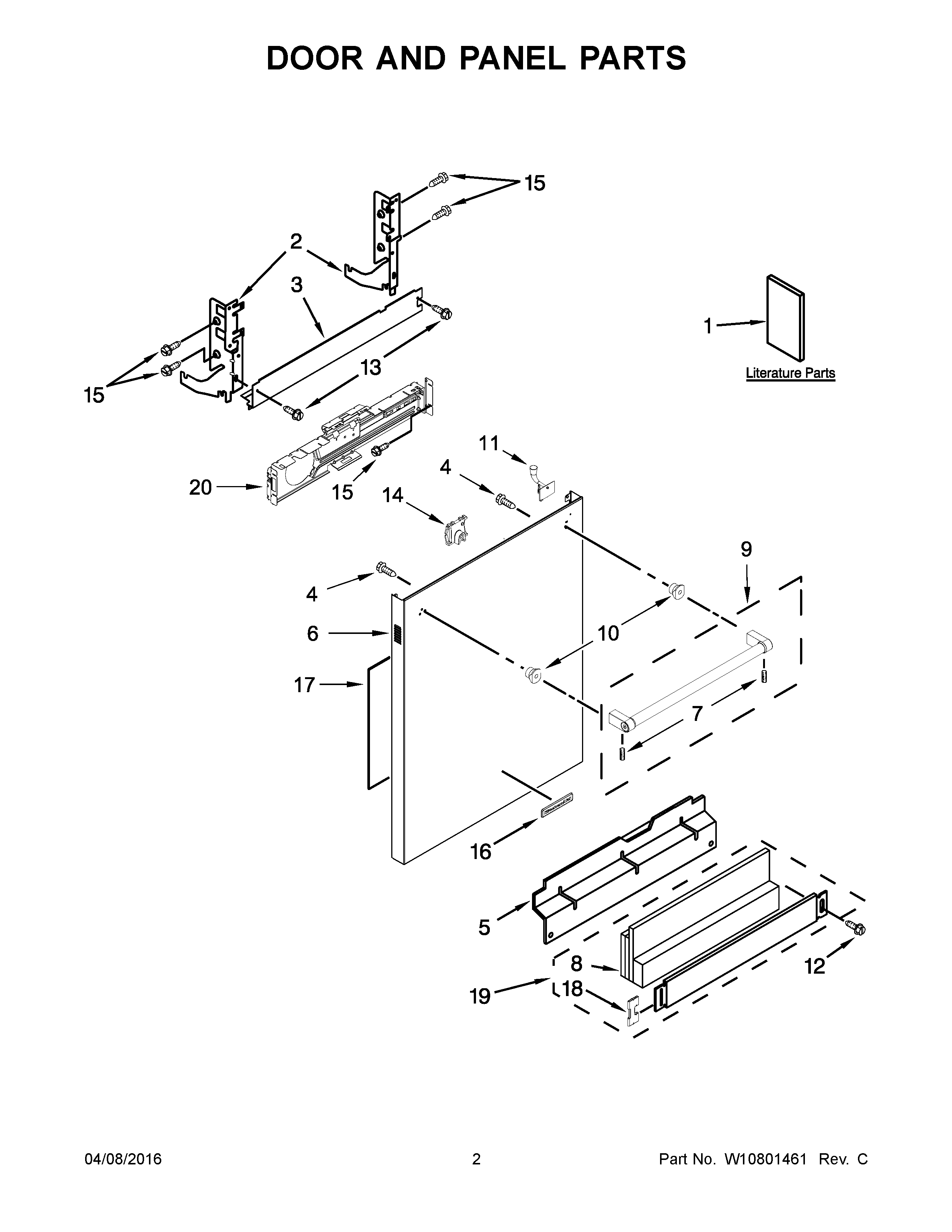

KDTM404ESS1 02 – DOOR AND PANEL PARTS

KDTM404ESS1 02 – DOOR AND PANEL PARTS

Written by

in

KDTM404ESS1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DTECH SHEET, FRENCH
1INSTALLATION INSTRUCTIONS
1CTECH SHEET, ENGLISH
1BUSE & CARE GUIDE
1AENERGY GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10919287 Whirlpool Dishwasher Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
5AW10909066 Whirlpool Dishwasher Panel
6BW10900374 Whirlpool Dishwasher Door Panel, Stainless
6W10901498 Whirlpool Dishwasher Panel
6CW10919297 Whirlpool Panel
6AW10911301 Whirlpool Dishwasher Panel
7W10917698 Whirlpool Dishwasher Screw
8W11223838 Whirlpool Shield
9W10708004 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10831645 Whirlpool Dishwasher Indicator Light
12AWPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W10692757 Whirlpool Dishwasher Nut Assembly
15WP3400071 Whirlpool Screw
16W10839793 Whirlpool Refrigerator Nameplate
17W11126003 Whirlpool Dishwasher Insulation Pad
18WP8269016 Whirlpool Clip Assembly
19AW10751505 Whirlpool Toe Panel
20W11116870 Whirlpool Dishwasher Control Bracket
