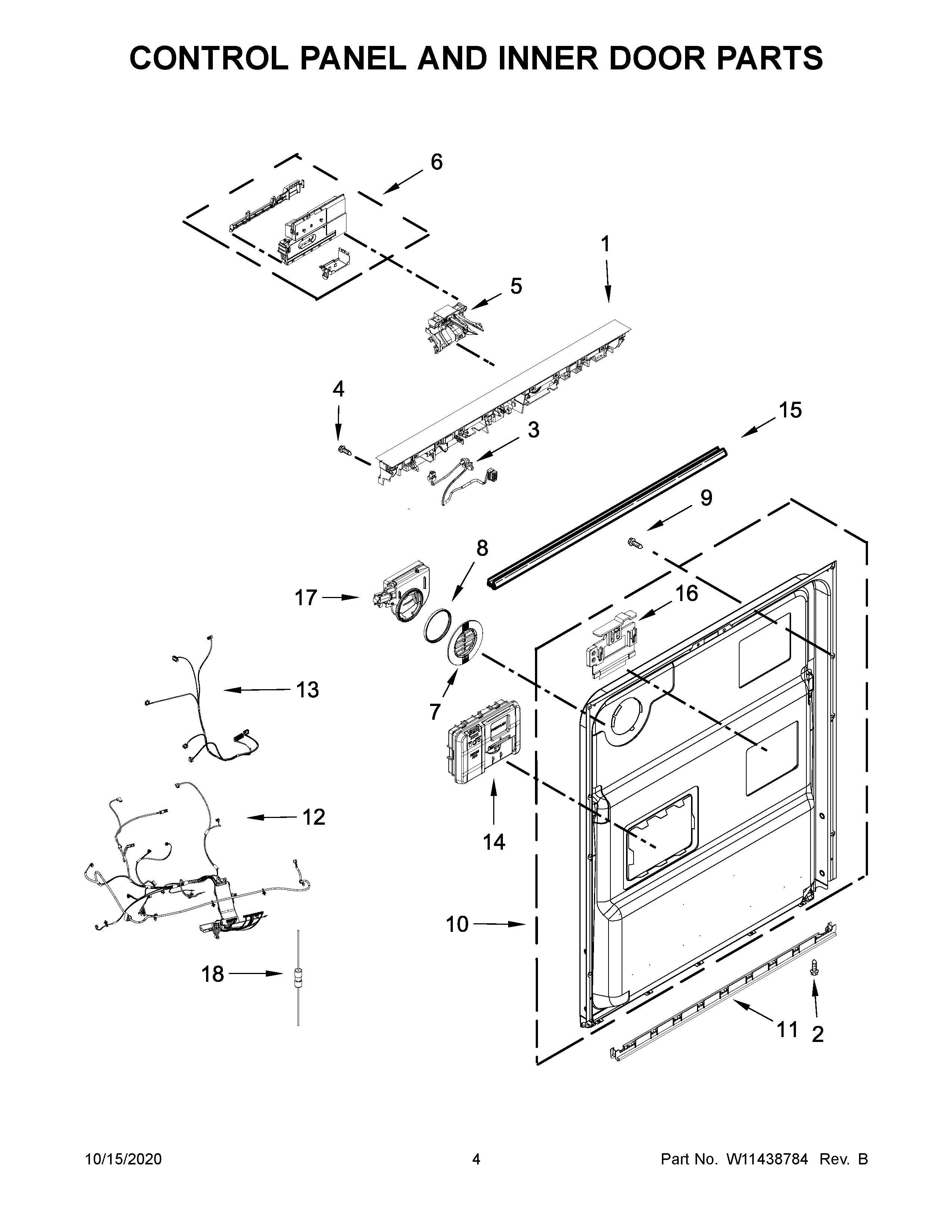

KDTM404KBS0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

Position	Product
1	W11416457 Whirlpool Console Assembly
2	W11627527 Whirlpool Screw
3	W11690158 Whirlpool Wire Harness
4	WPW10213953 Whirlpool Screw
5	W11412299 Whirlpool Dishwasher Door Latch
6	W11410066 Whirlpool Control Board + Core
7	W11545290 Whirlpool Deflector
8	W11545539 Whirlpool Gasket Seal
9	WPW10348409 Whirlpool Screw
10	W11559689 Whirlpool Door Inner
11	W11664713 Whirlpool Dishwasher Lower Door Seal
12	W11568793 Whirlpool Harness
13	W11611303 Whirlpool Wire Harness
14	DISPENSER
15	W11412696 Whirlpool Seal
16	W11088985 Whirlpool Bracket Assembly
17	VENT
18	W11397505 Whirlpool Wire Harness
