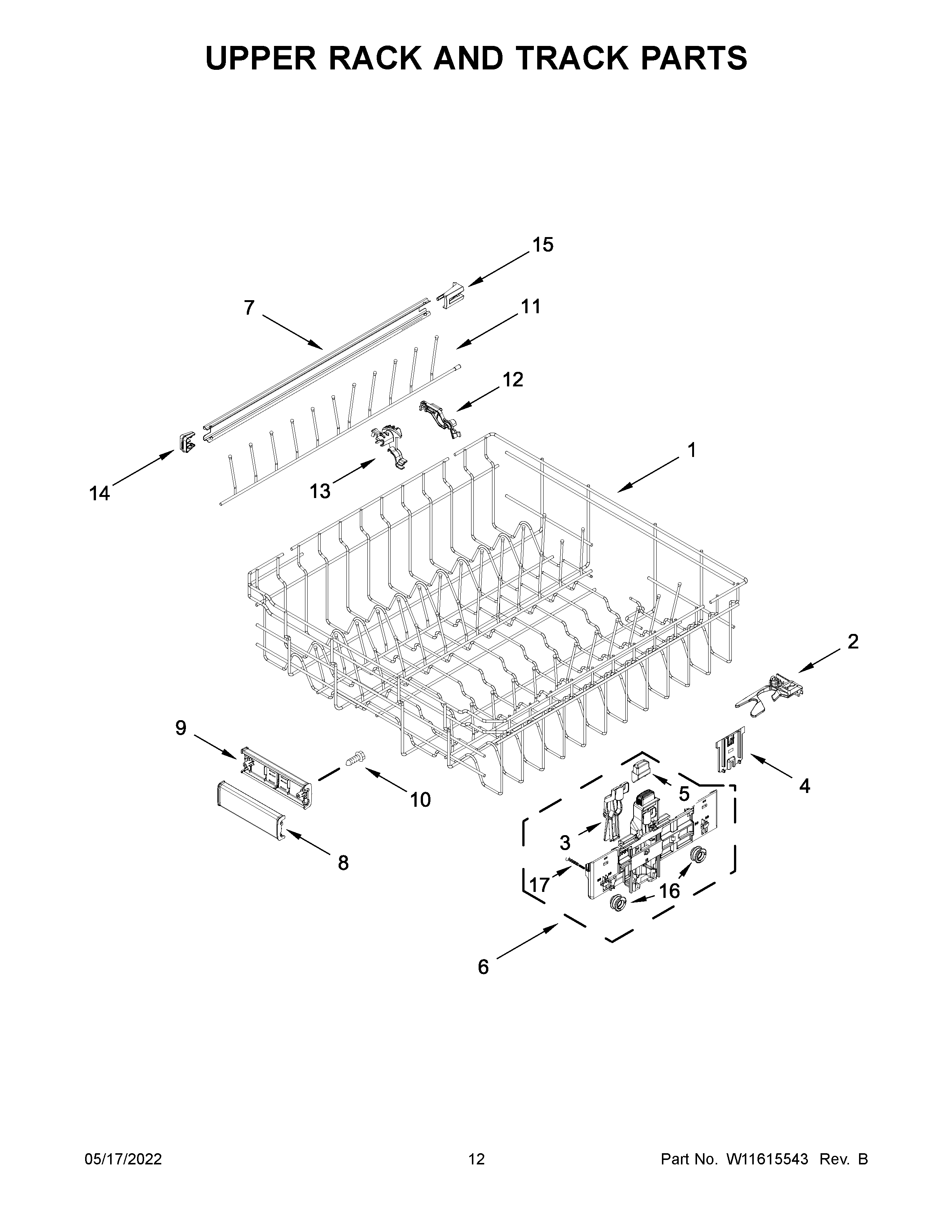

KDTM404KBS1 07 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W11672788 Whirlpool Dish Rack
2	CLIP
3	W11180178 Whirlpool Positioner
4	W11580020 Whirlpool Positioner
5	BUTTON, ADJUSTER ARM
6A	W11551430 Whirlpool Adjuster
6	W11551537 Whirlpool Adjuster
7	W11561204 Whirlpool Track Assembly
8	W11268682 Whirlpool Handle
9	W11268681 Whirlpool Handle
10	WP9741232 Whirlpool Dishwasher Screw
11	W11727974 Whirlpool Tine Row
12	W11627535 Whirlpool Tine Pivot
13	W11179755 Whirlpool Clip
14	W11545307 Whirlpool Dishwasher Rack Stop Clip
15	W11579392 Whirlpool Stop
16	W11545296 Whirlpool Roller
17	W11708397 Whirlpool Screw
