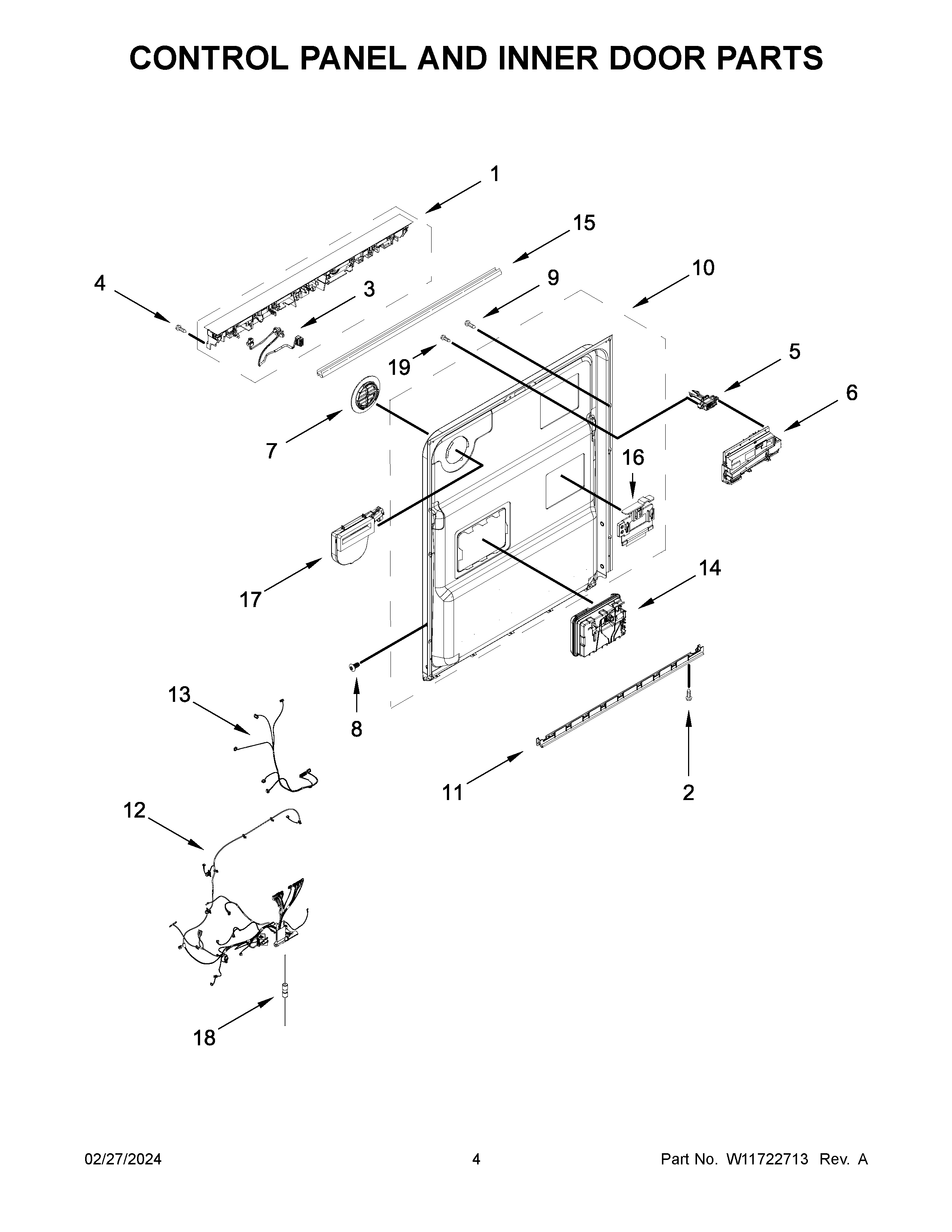

KDTM405PPS1 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11622490-includeCORE W11622490 Whirlpool Console + Core
2W11627527 Whirlpool Screw
3W11690158 Whirlpool Wire Harness
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11683135-includeCORE Whirlpool W11683135 Dishwasher Electronic Control Board with Core
7W11545290 Whirlpool Deflector
8WP3400071 Whirlpool Screw
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12HARNS-WIRE
13W11685311 Whirlpool Wire Harness
14DISPENSER
15W11213719 Whirlpool Dishwasher Seal
16W11088985 Whirlpool Bracket Assembly
17VENT
18W11397505 Whirlpool Wire Harness
19WPW10348408 Whirlpool Dishwasher Screw
