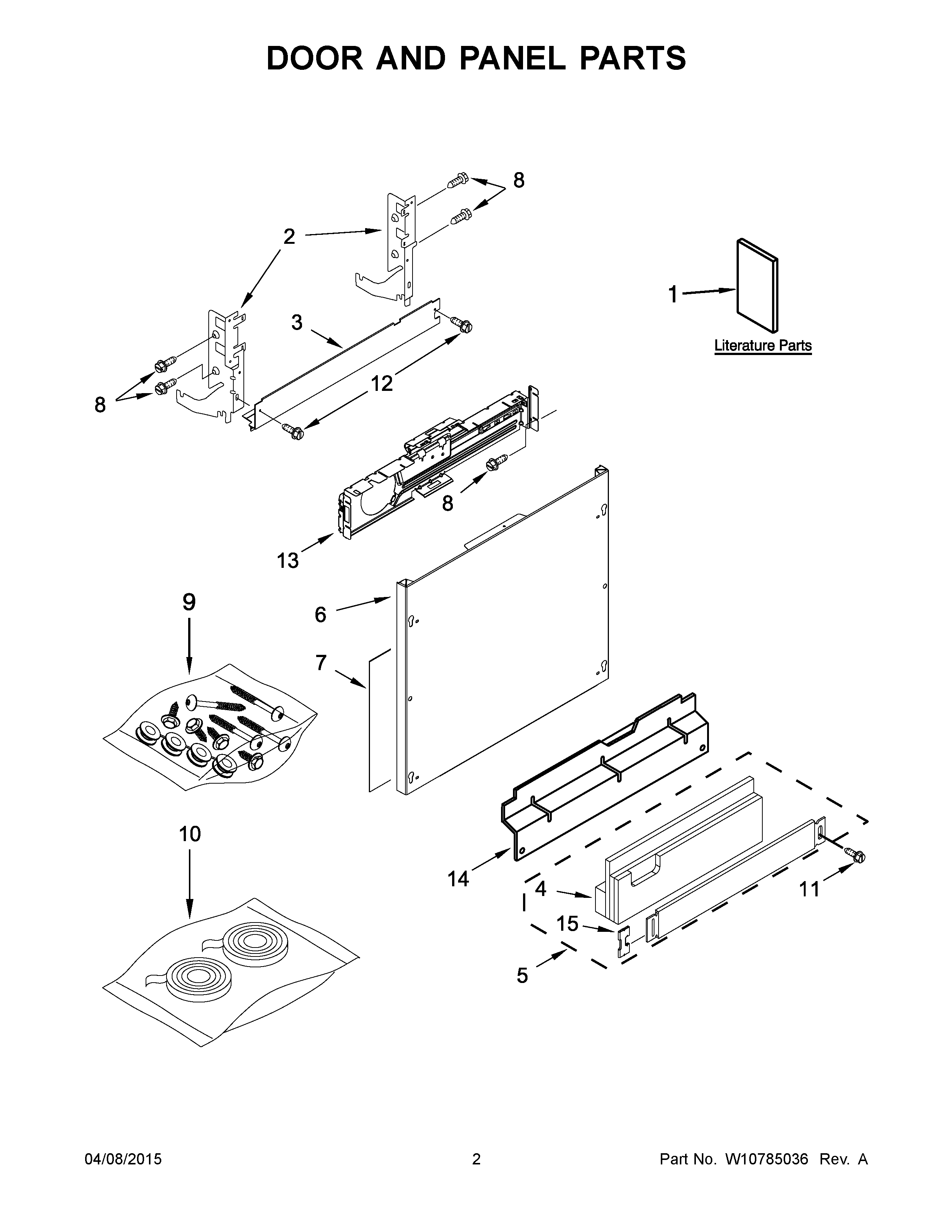

KDTM504EPA0 02 – DOOR AND PANEL PARTS

KDTM504EPA0 02 – DOOR AND PANEL PARTS

Written by

in

KDTM504EPA0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET, ENGLISH
1AENERGY GUIDE
1BUSE & CARE GUIDE
1DTECH SHEET, FRENCH
1ETEMPLATE, 6" CUSTOM PANEL
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11223838 Whirlpool Shield
6W11113792 Whirlpool Dishwasher Panel
7W10234565 Whirlpool Dishwasher Insulation Pad
8WP3400071 Whirlpool Screw
9WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
10WPW10366978 Whirlpool Dishwasher Seal
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
13W11116870 Whirlpool Dishwasher Control Bracket
14W10909064 Whirlpool Dishwasher Black Access Panel
15WP8269016 Whirlpool Clip Assembly
